MAX4426ESA+ - Analog Devices

Description: S Upgrade for TSC4426/TSC4427/TSC4428 S Lower On Resistance: 4Ω vs. 7Ω S Shorter Delay Times: tD1 - 10ns vs. 30ns tD2 - 25ns vs. 50ns S 1.5A Peak Output Current S Fast Rise and Fall Times: Typically 20ns with 1000pF Load

Download MAX4426ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

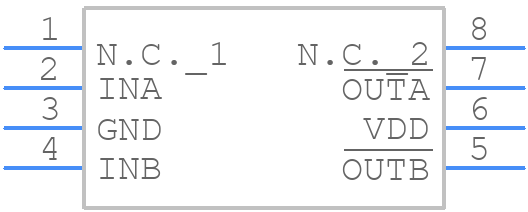

MAX4426ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4426ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX4426ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX4426ESA+ Details

  • Manufacturer Part Number:

    MAX4426ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1993-03-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.753 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.06 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    3.9116 mm

MAX4426ESA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX4426ESA+ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 10nF to 100nF bypass capacitor between the VCC and GND pins to reduce noise and improve stability.
  • To ensure the MAX4426ESA+ is operating within its safe operating area (SOA), you should monitor the device's junction temperature, input voltage, and output current. The device's junction temperature should not exceed 150°C, and the input voltage should be within the recommended range of 2.7V to 5.5V. The output current should also be within the recommended range of 1mA to 100mA.
  • The recommended input impedance for the MAX4426ESA+ is 1kΩ to 10kΩ. This impedance range ensures that the device can accurately sense the input voltage and provide a stable output voltage.
  • The MAX4426ESA+ is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. For example, the output current may need to be reduced at high temperatures to prevent overheating. It's also recommended to use a heat sink or thermal pad to improve heat dissipation.
  • To troubleshoot issues with the MAX4426ESA+, start by checking the input voltage and output voltage using an oscilloscope or multimeter. Verify that the input voltage is within the recommended range and that the output voltage is stable. Check for any signs of overheating, such as excessive current draw or high junction temperature. Also, verify that the device is properly soldered and that there are no shorts or opens on the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4426ESA+ Overview

Use the download button to access the MAX4426ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX44, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
