MAX4427ESA+ - Analog Devices

Description: MAX4427ESA+, Dual MOSFET Power Driver 1.5A, Non-Inverting, 4.5 → 18 V, 8-Pin SOIC

Download MAX4427ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

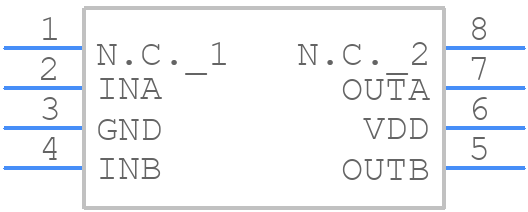

Symbol
MAX4427ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4427ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+19F
click to zoom
3D Models
MAX4427ESA+ - Analog Devices - 3D model - Small Outline Packages - S8+19F
click to zoom

MAX4427ESA+ Details

  • Manufacturer Part Number:

    MAX4427ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1993-03-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.06 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    3.9 mm

MAX4427ESA+ Frequently Asked Questions (FAQs)

  • The MAX4427ESA+ is a high-frequency device, so it's essential to follow good layout and placement practices to minimize noise and ensure optimal performance. Place the device close to the power supply, use short traces, and avoid crossing signal lines over the power plane. Also, ensure that the input and output traces are well-separated to prevent coupling.
  • The MAX4427ESA+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat sinking and thermal management. Use a thermal pad or heat sink on the exposed pad, and ensure good airflow around the device. Also, avoid overheating the device during soldering or rework.
  • The MAX4427ESA+ is a high-speed device, and proper termination is essential to prevent signal reflections and ensure signal integrity. Use a 50Ω termination resistor at the input and output, and consider using a series resistor and capacitor at the input to filter out high-frequency noise.
  • The MAX4427ESA+ requires a single 5V power supply, and it's essential to ensure that the power supply is clean and well-regulated. Use a low-dropout regulator (LDO) or a switching regulator with a low noise output to power the device. Also, ensure that the input bias voltage is within the recommended range of 2.5V to 5V.
  • The MAX4427ESA+ is a sensitive device and requires proper ESD protection to prevent damage. Use ESD protection devices such as TVS diodes or ESD arrays at the input and output pins, and ensure that the PCB is designed with ESD protection in mind.
