MAX4512ESE+ - Analog Devices

Description: Maxim MAX4512ESE+, Analogue Switch Quad SPST, 9 → 36 V, 16-Pin SOIC

Download MAX4512ESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

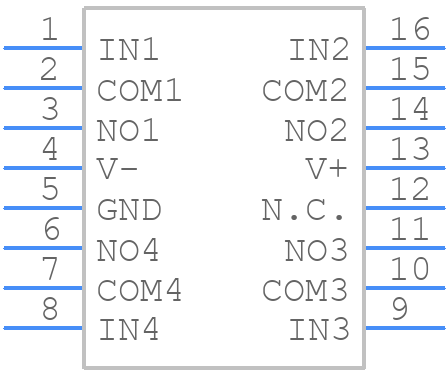

Symbol
MAX4512ESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4512ESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16+5
click to zoom
3D Models
MAX4512ESE+ - Analog Devices - 3D model - Small Outline Packages - S16+5
click to zoom

MAX4512ESE+ Details

  • Manufacturer Part Number:

    MAX4512ESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-06-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    62 dB

  • On-state Resistance Match-Nom:

    3 Ω

  • On-state Resistance-Max (Ron):

    160 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    400 ns

  • Switch-on Time-Max:

    500 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4512ESE+ Frequently Asked Questions (FAQs)

  • The MAX4512ESE+ is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the MAX4512ESE+ is properly biased and configured for your specific application, it is recommended to follow the biasing and configuration guidelines provided in the datasheet. This includes selecting the appropriate input and output voltage ranges, setting the gain and offset correctly, and configuring the device for the desired operating mode. Additionally, it is recommended to consult the application notes and design guides provided by Analog Devices Inc for more detailed information and examples.
  • The MAX4512ESE+ has a maximum junction temperature of 150°C, and it is recommended to ensure that the device operates within the recommended temperature range of -40°C to 125°C. To achieve this, it is recommended to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to ensure good airflow around the device. Additionally, it is recommended to follow the thermal design guidelines provided in the datasheet and to consult the application notes and design guides provided by Analog Devices Inc for more detailed information and examples.
  • To troubleshoot common issues with the MAX4512ESE+, such as oscillations or instability, it is recommended to follow a systematic approach. First, ensure that the device is properly biased and configured for the specific application. Next, check the input and output signals for any signs of distortion or clipping. Then, verify that the device is operating within the recommended temperature range and that the power supply is stable and noise-free. Finally, consult the application notes and design guides provided by Analog Devices Inc for more detailed information and examples of troubleshooting common issues.
  • The MAX4512ESE+ has built-in ESD protection and latch-up prevention features, but it is still recommended to take precautions to prevent damage from electrostatic discharge and latch-up. This includes handling the device by the body only, using an anti-static wrist strap or mat, and ensuring that the device is properly grounded during handling and assembly. Additionally, it is recommended to follow the ESD protection and latch-up prevention guidelines provided in the datasheet and to consult the application notes and design guides provided by Analog Devices Inc for more detailed information and examples.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4512ESE+ Overview

Use the download button to access the MAX4512ESE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX45, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
