MAX4519CSD+ - Analog Devices

Description: Multiplexer Switch ICs Precision, 4-Channel/Dual 2-Channel, Low-Voltage, CMOS Analog Multiplexers

Download MAX4519CSD+ Model

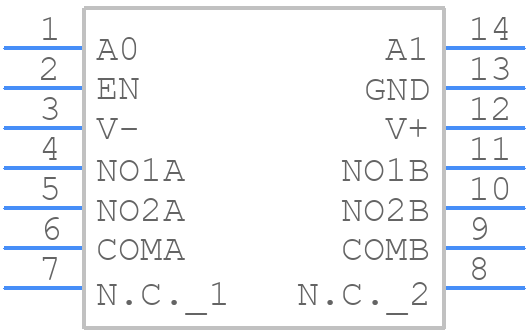

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX4519CSD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14L SOIC
click to zoom
3D Models
MAX4519CSD+ - Analog Devices  - 3D model - Small Outline Packages - 14L SOIC
click to zoom

MAX4519CSD+ Details

  • Manufacturer Part Number:

    MAX4519CSD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    1996-05-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -2.7 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    4 Ω

  • On-state Resistance-Max (Ron):

    100 Ω

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    150 ns

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm
