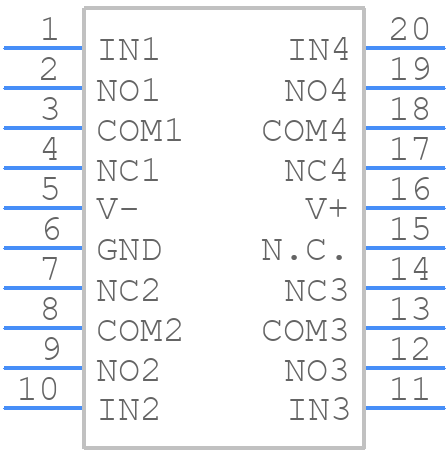

MAX4533CAP+ - Analog Devices

MAX4533CAP+ Details

• Manufacturer Part Number:

  MAX4533CAP+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  20-SSOP-5.3_MM

• Package Description:

  ROHS COMPLIANT, SSOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  20-SSOP-5.3_MM

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1999-04-07

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  CAN ALSO OPERATE AT 12V NOMINAL

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  7.2 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Max (Vsup):

  -18 V

• Neg Supply Voltage-Min (Vsup):

  -4.5 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Channels:

  1

• Number of Functions:

  4

• Number of Terminals:

  20

• Off-state Isolation-Nom:

  62 dB

• On-state Resistance Match-Nom:

  6 Ω

• On-state Resistance-Max (Ron):

  175 Ω

• Operating Temperature-Max:

  70 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.99 mm

• Signal Current-Max:

  0.03 A

• Supply Current-Max (Isup):

  1 mA

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  150 ns

• Switch-on Time-Max:

  250 ns

• Switching:

  BREAK-BEFORE-MAKE

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5.29 mm
