MAX4533EAP+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4533EAP+ - Analogue Switch, Fault Protected, 4 Channels, SPDT, 390 ohm, 9V to 36V, ± 4.5V to ± 18V, SSOP

Download MAX4533EAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

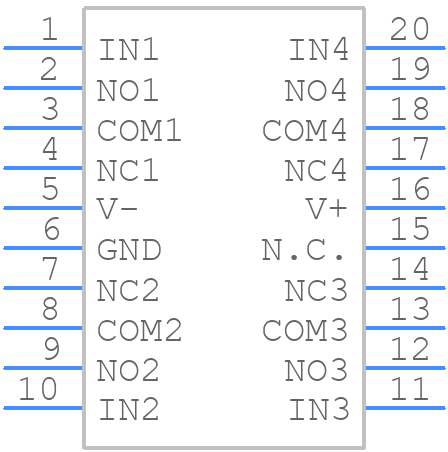

MAX4533EAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4533EAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ssop-20-ren1
click to zoom
3D Models
MAX4533EAP+ - Analog Devices - 3D model - Small Outline Packages - ssop-20-ren1
click to zoom

MAX4533EAP+ Details

  • Manufacturer Part Number:

    MAX4533EAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Package Description:

    ROHS COMPLIANT, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO OPERATE AT 12V NOMINAL

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    62 dB

  • On-state Resistance Match-Nom:

    6 Ω

  • On-state Resistance-Max (Ron):

    175 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.99 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    250 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX4533EAP+ Frequently Asked Questions (FAQs)

  • The MAX4533EAP+ is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the MAX4533EAP+ is properly biased and configured for your specific application, it is recommended to follow the application circuit and biasing scheme provided in the datasheet. Additionally, you should consult the device's electrical characteristics and performance graphs to determine the optimal biasing and configuration for your specific use case. You may also need to consider factors such as input and output impedance, gain, and bandwidth.
  • The MAX4533EAP+ has a recommended operating temperature range of -40°C to +125°C. To ensure the device operates within this range, it is recommended to provide adequate heat sinking and thermal management. This can include using a heat sink, thermal interface material, and ensuring good airflow around the device. You should also consider the power dissipation of the device and ensure it is operated within its recommended power rating.
  • To troubleshoot common issues with the MAX4533EAP+, such as oscillation or instability, it is recommended to follow a systematic approach. First, ensure the device is properly biased and configured according to the datasheet. Next, check the input and output signals using an oscilloscope to identify any anomalies. You may also need to check the power supply and ensure it is stable and within the recommended range. Additionally, consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
  • The MAX4533EAP+ is a sensitive device and requires proper ESD protection and handling precautions to prevent damage. It is recommended to handle the device by the body only, and to use an ESD wrist strap or mat when handling the device. Additionally, you should ensure the device is stored in an ESD-safe environment and that all equipment and tools used to handle the device are ESD-safe.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4533EAP+ Overview

Use the download button to access the MAX4533EAP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX45, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
