MAX4534ESD+ - Analog Devices

Description: Multiplexer Switch ICs Fault-Protected, High-Voltage, Single 4-to-1/Dual 2-to-1 Multiplexers

Download MAX4534ESD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

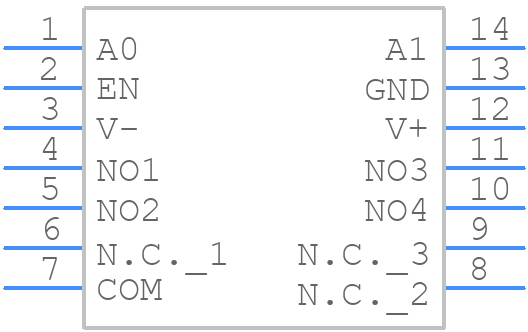

Symbol
MAX4534ESD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4534ESD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14 Narrow SO-
click to zoom
3D Models
MAX4534ESD+ - Analog Devices - 3D model - Small Outline Packages - 14 Narrow SO-
click to zoom

MAX4534ESD+ Details

  • Manufacturer Part Number:

    MAX4534ESD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    SO-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO OPERATE WITH SINGLE 12V SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    62 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    400 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.375 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    200 ns

  • Switch-on Time-Max:

    275 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4534ESD+ Frequently Asked Questions (FAQs)

  • The MAX4534ESD+ is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the guidelines provided in the datasheet, such as keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing high-frequency signals near the device.
  • To ensure the MAX4534ESD+ is properly biased and configured for your specific application, it is recommended to follow the guidelines provided in the datasheet and application notes. This includes selecting the appropriate input and output voltage ranges, setting the gain and offset correctly, and ensuring the device is operated within its recommended operating conditions. Additionally, it is recommended to consult with Analog Devices' application engineers or technical support team for specific guidance on your application.
  • The MAX4534ESD+ has a maximum junction temperature of 150°C, and it is recommended to ensure the device operates within its recommended temperature range to prevent thermal shutdown and ensure reliability. This can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, it is recommended to monitor the device's temperature and adjust the operating conditions accordingly to prevent overheating.
  • To troubleshoot common issues with the MAX4534ESD+, such as oscillation or instability, it is recommended to follow a systematic approach. This includes checking the device's operating conditions, ensuring the input and output signals are within the recommended ranges, and verifying the device is properly biased and configured. Additionally, it is recommended to use oscilloscopes and other diagnostic tools to identify the root cause of the issue and consult with Analog Devices' application engineers or technical support team for specific guidance.
  • The MAX4534ESD+ has built-in ESD protection, but it is still important to take precautions to prevent electrostatic discharge. This includes handling the device by the body, using ESD-safe packaging and handling materials, and ensuring the device is properly grounded during assembly and testing. Additionally, it is recommended to follow the guidelines provided in the datasheet and industry standards for ESD protection, such as the JEDEC JESD625 standard.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4534ESD+ Overview

Use the download button to access the MAX4534ESD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX45, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
