MAX4544ESA+T - Analog Devices

Description: Analogue Switch ICs Low-Voltage, Single-Supply Dual SPST/SPDT Analog Switches

Download MAX4544ESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

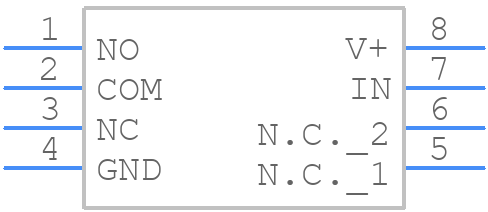

MAX4544ESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4544ESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX4544ESA+T - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX4544ESA+T Details

  • Manufacturer Part Number:

    MAX4544ESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-04-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    76 dB

  • On-state Resistance Match-Nom:

    0.8 Ω

  • On-state Resistance-Max (Ron):

    75 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.01 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    240 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4544ESA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4544ESA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces as short as possible.
  • The MAX4544ESA+T requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power source, and to ensure that the power supply is stable before applying any input signals. There are no specific power sequencing requirements, but it's recommended to power the device before applying any input signals.
  • The MAX4544ESA+T can operate up to 100MHz, but the maximum operating frequency depends on the specific application and the quality of the input signals. As the frequency increases, the device's performance may be affected by increased power consumption, reduced signal-to-noise ratio, and decreased bandwidth.
  • To troubleshoot common issues with the MAX4544ESA+T, start by checking the power supply and input signals for any errors or noise. Verify that the device is properly powered and that the input signals are within the recommended specifications. Check for any signs of overheating, and ensure that the device is properly soldered and mounted on the PCB. If the issue persists, consult the datasheet and application notes for further troubleshooting guidance.
  • The MAX4544ESA+T has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, and use a heat sink or thermal pad if necessary. Keep the device away from any heat sources, and avoid blocking the airflow around the device. Monitor the device's temperature and adjust the operating conditions accordingly.
