MAX4562EEE+ - Analog Devices

Description: Maxim MAX4562EEE+, Analogue Switch Dual SPDT, Dual SPST audio, video, 2.7 → 5.5 V, 16-Pin QSOP

Download MAX4562EEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

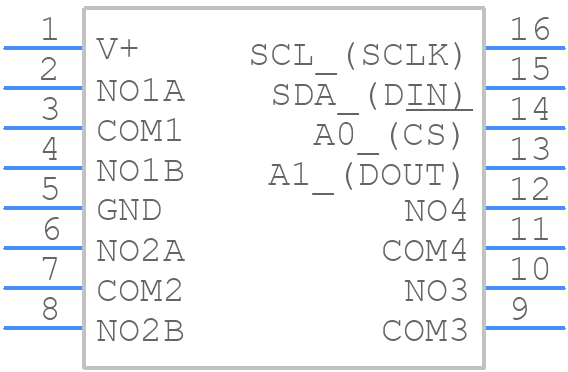

MAX4562EEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4562EEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP
click to zoom
3D Models
MAX4562EEE+ - Analog Devices - 3D model - Small Outline Packages - 16 QSOP
click to zoom

MAX4562EEE+ Details

  • Manufacturer Part Number:

    MAX4562EEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    AUDIO/VIDEO SWITCH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    3 Ω

  • On-state Resistance-Max (Ron):

    60 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    350 ns

  • Switch-on Time-Max:

    800 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4562EEE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4562EEE+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the layout symmetrical to reduce electromagnetic interference (EMI).
  • The output filter components (Rf, Cf, and Lf) should be chosen based on the desired cutoff frequency, output impedance, and load characteristics. A good starting point is to use the values recommended in the datasheet, and then adjust them based on simulation results or empirical testing. It's also important to consider the component tolerances and parasitic effects when selecting the output filter components.
  • The MAX4562EEE+ has an absolute maximum input voltage rating of 6V. Exceeding this voltage can cause damage to the device. However, the recommended operating input voltage range is 2.7V to 5.5V. It's essential to ensure that the input voltage remains within this range to guarantee reliable operation and prevent damage.
  • The MAX4562EEE+ requires a proper bias voltage (VCC) to operate correctly. The recommended bias voltage range is 2.7V to 5.5V. It's essential to ensure that the bias voltage is stable and noise-free, as any fluctuations can affect the device's performance. Additionally, the input common-mode voltage should be within the recommended range (0.5V to VCC - 0.5V) to maintain optimal performance.
  • The typical settling time for the MAX4562EEE+ output voltage is around 10µs to 20µs, depending on the output filter components and load characteristics. However, this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more detailed information on settling time and output voltage response.
