MAX4617CUE+T - Analog Devices

Description: Multiplexer Switch ICs High-Speed, Low-Voltage, CMOS Analog Multiplexers/Switches

Download MAX4617CUE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

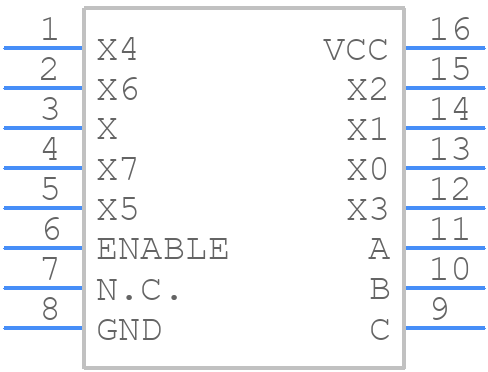

Symbol
MAX4617CUE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4617CUE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX4617CUE+T
click to zoom
3D Models
MAX4617CUE+T - Analog Devices - 3D model - Small Outline Packages - MAX4617CUE+T
click to zoom

MAX4617CUE+T Details

  • Manufacturer Part Number:

    MAX4617CUE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP, TSSOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On-state Resistance-Max (Ron):

    20 Ω

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.75 A

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    15 ns

  • Switch-on Time-Max:

    20 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX4617CUE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4617CUE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and away from noise sources.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC before applying any input signals. Also, ensure that the VCC supply is stable and within the recommended operating range before applying any input signals.
  • The maximum allowable input voltage for the MAX4617CUE+T is 5.5V. To protect the device from overvoltage, use a voltage clamp or a voltage regulator to limit the input voltage to within the recommended range. Additionally, consider using input protection diodes or resistors to limit the input voltage and current.
  • To optimize the MAX4617CUE+T for low-power operation, use a low-dropout voltage regulator to minimize power consumption, reduce the clock frequency, and use a low-power mode if available. Additionally, consider using a power-down mode or shutting down the device when not in use to minimize standby power consumption.
  • The MAX4617CUE+T has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, use a heat sink or a thermal pad to dissipate heat, and ensure good airflow around the device. Additionally, consider using a thermally conductive material for the PCB and avoiding high-power dissipation components nearby.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4617CUE+T Overview

Use the download button to access the MAX4617CUE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX46, or try a keyword search, such as Multiplexers or Switches
