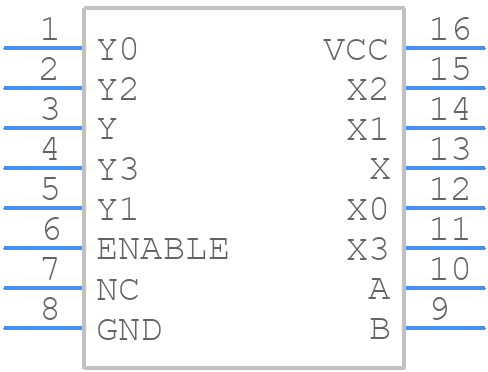

MAX4618ESE+ - Analog Devices

MAX4618ESE+ Details

• Manufacturer Part Number:

  MAX4618ESE+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  16-SOIC_N-150_MIL

• Package Description:

  SO-16

• Pin Count:

  16

• Manufacturer Package Code:

  16-SOIC_N-150_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1999-07-15

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog IC - Other Type:

  DIFFERENTIAL MULTIPLEXER

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  9.9 mm

• Moisture Sensitivity Level:

  1

• Normal Position:

  NO

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  93 dB

• On-state Resistance Match-Nom:

  1.2 Ω

• On-state Resistance-Max (Ron):

  20 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Signal Current-Max:

  0.075 A

• Supply Current-Max (Isup):

  0.01 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  15 ns

• Switch-on Time-Max:

  20 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
