MAX4634EUB+ - Analog Devices

Description: Analogue Multiplexer Single 4:1

Download MAX4634EUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

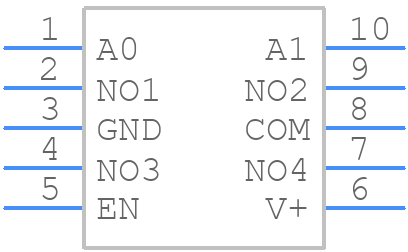

MAX4634EUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4634EUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX_2022
click to zoom
3D Models
MAX4634EUB+ - Analog Devices - 3D model - Small Outline Packages - 10 µMAX_2022
click to zoom

MAX4634EUB+ Details

  • Manufacturer Part Number:

    MAX4634EUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    80 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    7 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.05 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    14 ns

  • Switch-on Time-Max:

    22 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4634EUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4634EUB+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input traces as short as possible.
  • To ensure the accuracy of the MAX4634EUB+ output voltage, it's essential to follow proper PCB layout guidelines, use a low-ESR capacitor for the VCC bypass, and minimize the noise on the input pins. Additionally, the device should be operated within its recommended operating temperature range, and the output voltage should be buffered with an op-amp if it's being used to drive a load.
  • The MAX4634EUB+ can source up to 10mA of current and sink up to 2mA of current. However, it's recommended to limit the output current to 5mA or less to ensure the device operates within its recommended operating conditions.
  • While the MAX4634EUB+ can be used as a voltage regulator, it's not recommended due to its limited output current capability and lack of short-circuit protection. Instead, it's intended for use as a voltage reference or a low-dropout linear regulator in applications where a low quiescent current is required.
  • During power-up, the MAX4634EUB+ output voltage ramps up slowly to prevent overshoots and ensure a stable output. During power-down, the output voltage decays slowly to prevent any voltage spikes or oscillations. It's essential to follow the recommended power-up and power-down sequences to ensure the device operates correctly.
