MAX4652ESE+ - Analog Devices

Description: Maxim MAX4652ESE+, Analogue Switch Quad SPST, 1.8 → 5.5 V, 16-Pin SOIC

Download MAX4652ESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

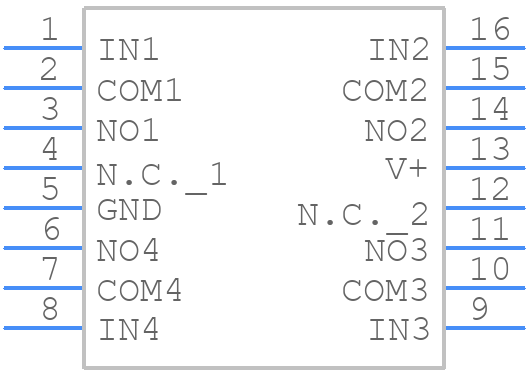

MAX4652ESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4652ESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX4652ESE+
click to zoom
3D Models
MAX4652ESE+ - Analog Devices - 3D model - Small Outline Packages - MAX4652ESE+
click to zoom

MAX4652ESE+ Details

  • Manufacturer Part Number:

    MAX4652ESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    7 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.05 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    10 ns

  • Switch-on Time-Max:

    16 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4652ESE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4652ESE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, use short traces and avoid routing digital signals near the analog inputs.
  • To properly terminate the differential outputs of the MAX4652ESE+, use a 100Ω differential termination resistor (e.g., 0505-101-RC) between the output pins (OUT+ and OUT-) and the receiving device's input pins. This ensures signal integrity and minimizes reflections.
  • The MAX4652ESE+ can operate up to 250MHz, but its performance may degrade at higher frequencies due to increased noise and distortion. To ensure optimal performance, operate the device within its recommended frequency range (typically up to 100MHz) and follow proper PCB layout and termination guidelines.
  • To prevent damage or incorrect operation, ensure that the power supplies (VCC and VEE) are powered up and down in the correct sequence. Power up VCC before VEE, and power down VEE before VCC. Additionally, use a power-up/down sequencing circuit or a voltage supervisor to ensure proper sequencing.
  • The recommended input common-mode voltage range for the MAX4652ESE+ is between VEE + 1.5V and VCC - 1.5V. Operating outside this range may cause the device to malfunction or exhibit reduced performance. Ensure that the input common-mode voltage is within the recommended range to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4652ESE+ Overview

Use the download button to access the MAX4652ESE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX46, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
