MAX4652EUE+T - Analog Devices

Description: Analog Switch ICs 4Ohm Dual SPST CMOS Analog Switch

Download MAX4652EUE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

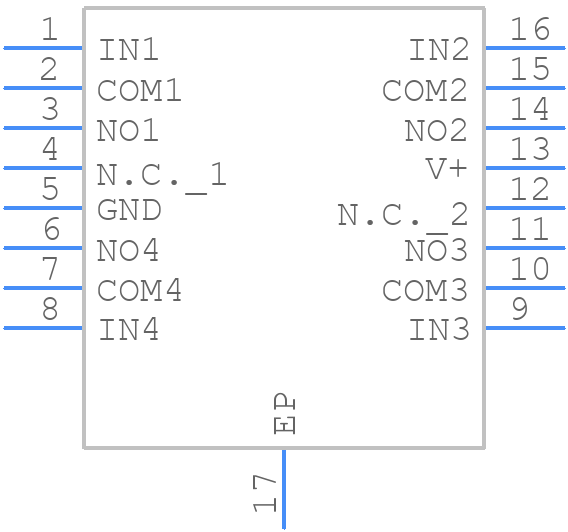

MAX4652EUE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4652EUE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16+2
click to zoom
3D Models
MAX4652EUE+T - Analog Devices - 3D model - Small Outline Packages - U16+2
click to zoom

MAX4652EUE+T Details

  • Manufacturer Part Number:

    MAX4652EUE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, 0.65 MM PITCH, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    7 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.05 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    10 ns

  • Switch-on Time-Max:

    16 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX4652EUE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4652EUE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a shielded enclosure and minimizing the length of the analog signal traces can help reduce EMI and noise.
  • To ensure proper powering and decoupling of the MAX4652EUE+T, use a high-quality power supply with low noise and ripple, and decouple the device with a 0.1uF ceramic capacitor between the VCC and GND pins. Additionally, use a 10uF electrolytic capacitor in parallel with the 0.1uF capacitor to filter out low-frequency noise.
  • The MAX4652EUE+T has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX4652EUE+T, start by verifying the power supply and decoupling, then check the input and output voltages using an oscilloscope. Ensure that the device is properly configured and that the input signals are within the specified range. If issues persist, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support.
  • The MAX4652EUE+T is a commercial-grade device, but it can be used in high-reliability or safety-critical applications with proper design, testing, and validation. However, it's recommended to consult with Analog Devices' technical support and to follow relevant industry standards and guidelines, such as IEC 61508 or DO-254, to ensure the device meets the required safety and reliability standards.
