MAX4664ESE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4664ESE+ - Analogue Switch, CMOS, 4 Channels, SPST - NC, 8 ohm, 4.5V to 36V, ± 4.5V to ± 20V, NSOIC, 16 Pins

Download MAX4664ESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

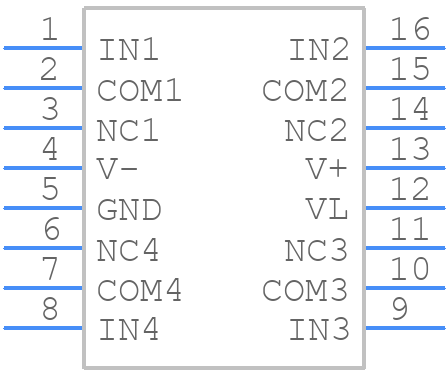

MAX4664ESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4664ESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16+8
click to zoom
3D Models
MAX4664ESE+ - Analog Devices - 3D model - Small Outline Packages - S16+8
click to zoom

MAX4664ESE+ Details

  • Manufacturer Part Number:

    MAX4664ESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-07-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    62 dB

  • On-state Resistance Match-Nom:

    0.2 Ω

  • On-state Resistance-Max (Ron):

    4 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.005 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    175 ns

  • Switch-on Time-Max:

    275 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4664ESE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4664ESE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input traces as short as possible.
  • The MAX4664ESE+ requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power source, and to ensure that the power supply is stable before applying any input signals. There are no specific power sequencing requirements, but it's recommended to power the device after the input signals are stable.
  • The MAX4664ESE+ can operate at data rates up to 100Mbps. The power consumption of the device increases with the data rate, but it's typically around 10mA at 100Mbps. However, the actual power consumption will depend on the specific application and the output load.
  • To troubleshoot issues with the MAX4664ESE+, start by checking the power supply and ensuring it's stable and within the recommended range. Then, verify that the input signals are correct and within the specified range. Use an oscilloscope to check the output signals and look for any signs of distortion or clipping. If the issue persists, check the PCB layout and ensure that it's following the recommended guidelines.
