MAX4684EUB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4684EUB+T - Analogue Switch, Low Voltage, 2 Channels, SPDT, 0.5 ohm, 1.8V to 5.5V, µMAX, 10 Pins

Download MAX4684EUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

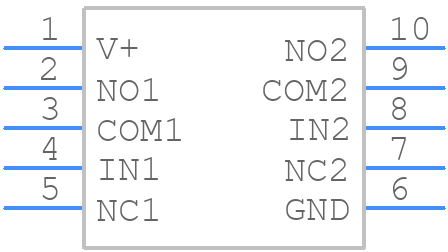

MAX4684EUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4684EUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2
click to zoom
3D Models
MAX4684EUB+T - Analog Devices - 3D model - Small Outline Packages - U10+2
click to zoom

MAX4684EUB+T Details

  • Manufacturer Part Number:

    MAX4684EUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    TSSOP, TSSOP10,.19,20

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    64 dB

  • On-state Resistance Match-Nom:

    0.06 Ω

  • On-state Resistance-Max (Ron):

    0.8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    40 ns

  • Switch-on Time-Max:

    60 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4684EUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4684EUB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX4684EUB+T requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. Power sequencing is not critical, but it's recommended to power the device after the input signals are stable to prevent unwanted switching.
  • The MAX4684EUB+T has an operating temperature range of -40°C to +125°C. The device's performance may degrade at higher temperatures, with a decrease in switching frequency and an increase in propagation delay. It's recommended to operate the device within the specified temperature range for optimal performance.
  • To troubleshoot issues with the MAX4684EUB+T, start by verifying the power supply and input signals. Check for proper power sequencing, input signal integrity, and output loading. Use an oscilloscope to monitor the input and output signals, and check for any signs of noise or oscillation. If the issue persists, consult the datasheet and application notes for guidance.
  • The MAX4684EUB+T is a commercial-grade device, but it can be used in high-reliability applications with proper design and testing. The device is compliant with various industry standards, including RoHS, REACH, and WEEE. However, it's recommended to consult with Analog Devices Inc for specific certification and compliance information for safety-critical applications.
