MAX4685EUB+T - Analog Devices

Description: Analogue Switch ICs 0.5Ohm/0.8Ohm Low-Voltage, Dual SPDT Analog Switches in UCSP

Download MAX4685EUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

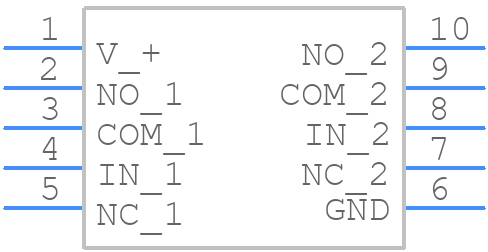

MAX4685EUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4685EUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2
click to zoom
3D Models
MAX4685EUB+T - Analog Devices - 3D model - Small Outline Packages - U10+2
click to zoom

MAX4685EUB+T Details

  • Manufacturer Part Number:

    MAX4685EUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    64 dB

  • On-state Resistance Match-Nom:

    0.06 Ω

  • On-state Resistance-Max (Ron):

    0.8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.3 A

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    40 ns

  • Switch-on Time-Max:

    60 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4685EUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4685EUB+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog nodes.
  • To ensure the MAX4685EUB+T operates within its recommended operating conditions, make sure to provide a stable input voltage within the specified range (4.5V to 5.5V), keep the junction temperature below 125°C, and avoid exceeding the maximum current ratings. Also, ensure that the device is properly decoupled and that the input and output capacitors are of sufficient value and type.
  • The recommended input capacitor value for the MAX4685EUB+T is 10uF to 22uF, with an X5R or X7R dielectric type. This ensures that the input voltage is properly filtered and that the device operates stably.
  • To troubleshoot issues with the MAX4685EUB+T, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly decoupled and that the input and output capacitors are of sufficient value and type. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any unusual waveforms or noise on the input or output. Finally, consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the MAX4685EUB+T is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and has a wide operating temperature range (-40°C to +125°C). However, it's essential to follow proper design and layout guidelines, as well as to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
