MAX4700CAE - Analog Devices

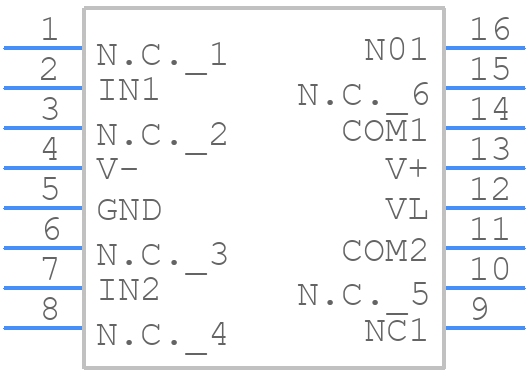

MAX4700CAE Details

• Manufacturer Part Number:

  MAX4700CAE

• Part Life Cycle Code:

  Active

• Package Description:

  SSOP-16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• Analog IC - Other Type:

  SPST

• JESD-30 Code:

  R-PDSO-G16

• Length:

  6.2 mm

• Neg Supply Voltage-Max (Vsup):

  -20 V

• Neg Supply Voltage-Min (Vsup):

  -4.5 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Normal Position:

  NO/NC

• Number of Channels:

  1

• Number of Functions:

  2

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  53 dB

• On-state Resistance Match-Nom:

  0.09 Ω

• On-state Resistance-Max (Ron):

  1.5 Ω

• Operating Temperature-Max:

  70 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Seated Height-Max:

  1.99 mm

• Signal Current-Max:

  0.2 A

• Supply Current-Max (Isup):

  0.005 mA

• Supply Voltage-Max (Vsup):

  20 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  300 ns

• Switch-on Time-Max:

  400 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  5.29 mm
