MAX4701EUE+ - Analog Devices

Description: Maxim MAX4701EUE+, Analogue Switch Dual DPDT, 1.8 → 5.5 V, 16-Pin TSSOP

Download MAX4701EUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

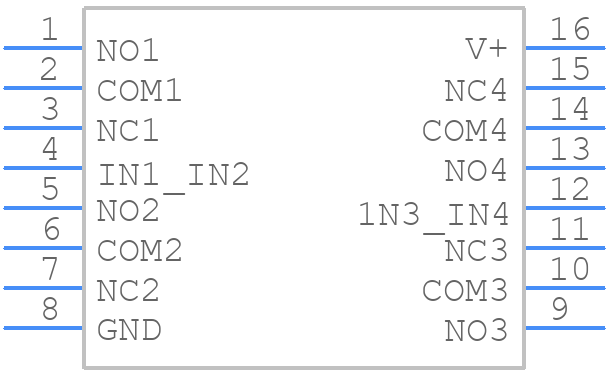

MAX4701EUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4701EUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin TSSOP
click to zoom
3D Models
MAX4701EUE+ - Analog Devices - 3D model - Small Outline Packages - 16-Pin TSSOP
click to zoom

MAX4701EUE+ Details

  • Manufacturer Part Number:

    MAX4701EUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-08-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    76 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    75 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    20 ns

  • Switch-on Time-Max:

    35 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX4701EUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4701EUE+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure accuracy, it's essential to follow proper layout and routing guidelines, use a high-precision voltage reference, and calibrate the device during production. Additionally, consider using a Kelvin connection to the voltage source to minimize errors due to lead resistance and inductance.
  • The MAX4701EUE+ is rated for operation from -40°C to +125°C, but it's essential to note that the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within the specified temperature range for optimal performance.
  • Yes, the MAX4701EUE+ is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, consider using a vibration-resistant PCB material and design to minimize the impact of vibrations on the device.
  • To troubleshoot issues with the MAX4701EUE+, start by verifying the power supply voltage, checking for proper PCB layout and routing, and ensuring that the device is properly configured. Use a logic analyzer or oscilloscope to monitor the device's output and input signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4701EUE+ Overview

Use the download button to access the MAX4701EUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX47, or try a keyword search, such as Multiplexers or Switches
