MAX4734ETC+T - Analog Devices

Description: Multiplexer Switch ICs 0.8OHM, Low-Voltage, 4-Channel Analog Multiplexer

Download MAX4734ETC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

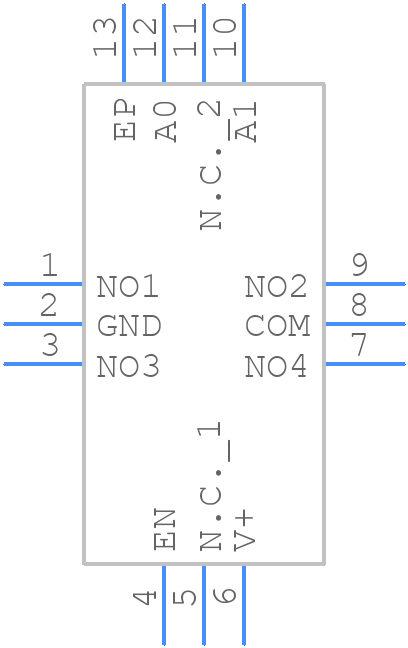

MAX4734ETC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4734ETC+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12 TQFN-EP
click to zoom
3D Models
MAX4734ETC+T - Analog Devices - 3D model - Quad Flat No-Lead - 12 TQFN-EP
click to zoom

MAX4734ETC+T Details

  • Manufacturer Part Number:

    MAX4734ETC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.80MM HEIGHT, ROHS COMPLIANT, MO-220WEED-1, TQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-05-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Off-state Isolation-Nom:

    56 dB

  • On-state Resistance Match-Nom:

    1.5 Ω

  • On-state Resistance-Max (Ron):

    2 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.15 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    25 ns

  • Switch-on Time-Max:

    30 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4734ETC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4734ETC+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper powering and decoupling of the MAX4734ETC+T, use a high-quality power supply with low noise and ripple, and decouple the device with a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed as close as possible to the device's power pins.
  • The MAX4734ETC+T has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot common issues with the MAX4734ETC+T, start by checking the input voltage and current, ensuring that they are within the recommended specifications. Next, verify that the device is properly decoupled and that the output voltage is within the expected range. If issues persist, check for PCB layout issues, such as noise coupling or EMI, and ensure that the device is properly soldered and connected.
  • Yes, the MAX4734ETC+T is suitable for use in high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. However, it's essential to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards.
