MAX4740ETE+ - Analog Devices

Description: Maxim MAX4740ETE+, Analogue Switch Quad SPDT Audio, 1.6 → 5.5 V, 16-Pin TQFN

Download MAX4740ETE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

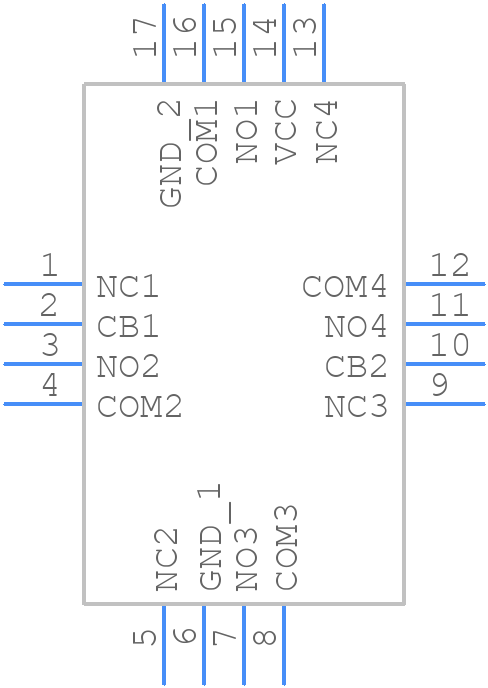

Symbol
MAX4740ETE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4740ETE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+4
click to zoom
3D Models
MAX4740ETE+ - Analog Devices - 3D model - Quad Flat No-Lead - T1633+4
click to zoom

MAX4740ETE+ Details

  • Manufacturer Part Number:

    MAX4740ETE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, MO-220, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-05-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    64 dB

  • On-state Resistance Match-Nom:

    0.06 Ω

  • On-state Resistance-Max (Ron):

    0.9 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.3 A

  • Supply Current-Max (Isup):

    0.005 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    55 ns

  • Switch-on Time-Max:

    70 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4740ETE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4740ETE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the input bypass and to keep the input and output traces as short as possible.
  • The MAX4740ETE+ requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power supply, and to ensure that the power supply is stable before applying any input signals. There are no specific power sequencing requirements, but it's recommended to power the device after the input signals are stable.
  • The MAX4740ETE+ has an operating temperature range of -40°C to +125°C. The device's performance may be affected at extreme temperatures, with increased offset voltage and decreased bandwidth at high temperatures, and increased noise and decreased accuracy at low temperatures.
  • Common issues with the MAX4740ETE+ can be troubleshooted by checking the power supply, input signals, and PCB layout. Ensure that the power supply is clean and stable, and that the input signals are within the recommended range. Check for any signs of oscillations or instability, such as excessive noise or ringing, and adjust the input and output capacitors or the PCB layout as needed.
  • The MAX4740ETE+ has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD according to the Human Body Model (HBM). To prevent latch-up, it's recommended to use a low-impedance power supply, avoid applying input signals that exceed the recommended range, and ensure that the device is properly powered down before applying any input signals.
