MAX4740ETE+T - Analog Devices

Description: Analogue Switch ICs Quad SPDT Audio Switches

Download MAX4740ETE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

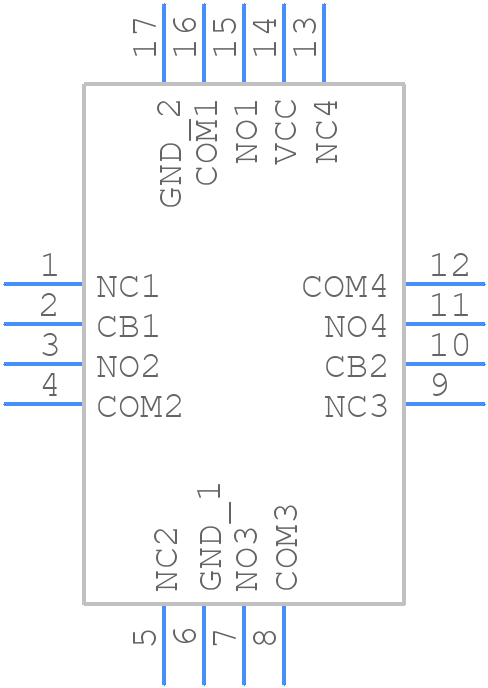

MAX4740ETE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4740ETE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+4
click to zoom
3D Models
MAX4740ETE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1633+4
click to zoom

MAX4740ETE+T Details

  • Manufacturer Part Number:

    MAX4740ETE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, MO-220, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-05-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    64 dB

  • On-state Resistance Match-Nom:

    0.06 Ω

  • On-state Resistance-Max (Ron):

    0.9 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.3 A

  • Supply Current-Max (Isup):

    0.005 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    55 ns

  • Switch-on Time-Max:

    70 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4740ETE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4740ETE+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down of the MAX4740ETE+T, make sure to follow the recommended power-up sequence, which is to apply the input voltage (VIN) before the enable signal (EN). During power-down, remove the enable signal before removing the input voltage. Also, ensure that the input voltage is within the recommended range and that the device is not subjected to voltage spikes or transients.
  • The MAX4740ETE+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the output voltage may vary. It's essential to ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
  • To troubleshoot issues with the MAX4740ETE+T, start by checking the input voltage, output voltage, and enable signal using an oscilloscope or a multimeter. Verify that the input voltage is within the recommended range and that the enable signal is properly toggling. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Also, ensure that the device is properly soldered and that there are no soldering defects or shorts.
  • Yes, the MAX4740ETE+T is suitable for high-reliability and high-availability applications. It has a high MTBF (mean time between failures) rating and is designed to meet the requirements of demanding applications. However, it's essential to follow proper design and manufacturing practices, such as using a robust PCB design, selecting high-quality components, and implementing adequate testing and validation procedures.
