MAX4761ETX+T - Analog Devices

Description: Analog Switch ICs High-Bandwidth Quad DPDT Switch

Download MAX4761ETX+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

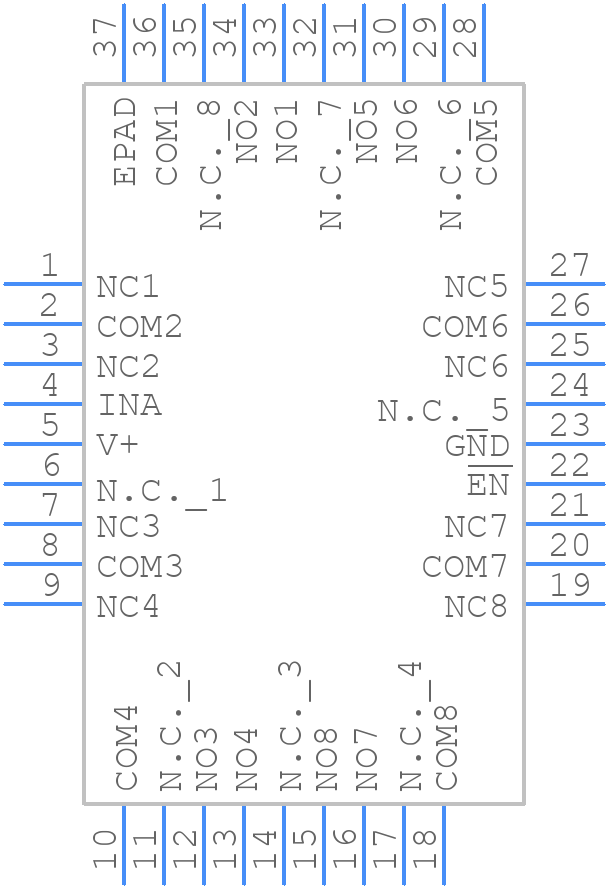

Symbol
MAX4761ETX+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4761ETX+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 36 TQFN_T3666-3-1
click to zoom
3D Models
MAX4761ETX+T - Analog Devices - 3D model - Quad Flat No-Lead - 36 TQFN_T3666-3-1
click to zoom

MAX4761ETX+T Details

  • Manufacturer Part Number:

    MAX4761ETX+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-LFCSP-6X6X0.75

  • Package Description:

    HVQCCN, LCC36,.25SQ,20

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-LFCSP-6X6X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-05-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    S-XQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    36

  • Off-state Isolation-Nom:

    80 dB

  • On-state Resistance Match-Nom:

    0.2 Ω

  • On-state Resistance-Max (Ron):

    3.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    60 ns

  • Switch-on Time-Max:

    150 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

MAX4761ETX+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4761ETX+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input and output connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper powering and decoupling of the MAX4761ETX+T, use a high-quality power supply with low noise and ripple, and decouple the device with a 0.1uF ceramic capacitor between the VCC and GND pins. Additionally, use a 10uF electrolytic capacitor in parallel with the 0.1uF capacitor to filter out low-frequency noise.
  • The MAX4761ETX+T has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot common issues with the MAX4761ETX+T, start by checking the input voltage and current, and ensure that the device is properly powered and decoupled. Next, check the output voltage and current, and verify that the output is not overloaded. If the issue persists, check the PCB layout and ensure that it meets the recommended layout guidelines. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX4761ETX+T is a high-reliability device, but it's essential to follow proper design and testing procedures to ensure the device meets the requirements of the application. Additionally, consult with Analog Devices Inc for specific guidance on using the MAX4761ETX+T in safety-critical applications, and ensure that the device is used within its specified operating conditions and parameters.
