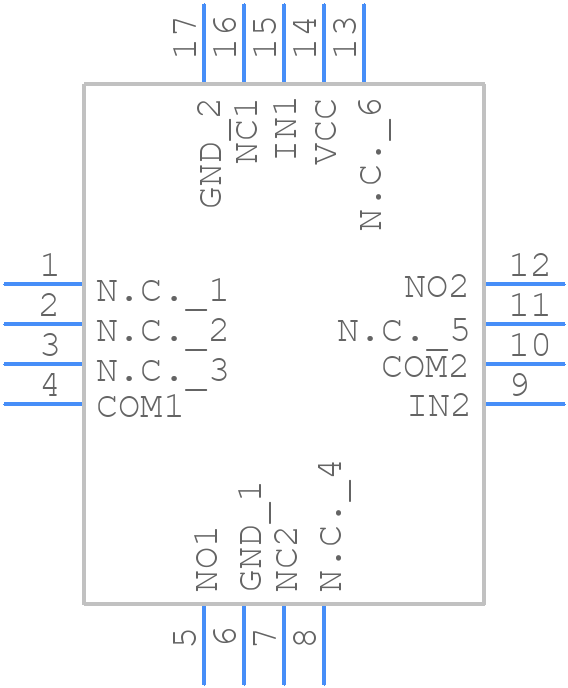

MAX4852ETE+ - Analog Devices

MAX4852ETE+ Details

• Manufacturer Part Number:

  MAX4852ETE+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  16-LFCSP-3X3X0.75

• Package Description:

  3 X 3 MM, 0.80 MM HEIGHT, MO-220WEED-2, TQFN-16

• Pin Count:

  16

• Manufacturer Package Code:

  16-LFCSP-3X3X0.75

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2004-08-13

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  S-XQCC-N16

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  2

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  80 dB

• On-state Resistance Match-Nom:

  0.1 Ω

• On-state Resistance-Max (Ron):

  4.5 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC16,.12SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Signal Current-Max:

  0.02 A

• Supply Current-Max (Isup):

  0.001 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  40 ns

• Switch-on Time-Max:

  60 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
