MAX4890ETJ+ - Analog Devices

Description: Maxim MAX4890ETJ+, 4-port Ethernet Switch, 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s 3 ??3.6 V, 32-Pin TQFN%0%0

Download MAX4890ETJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

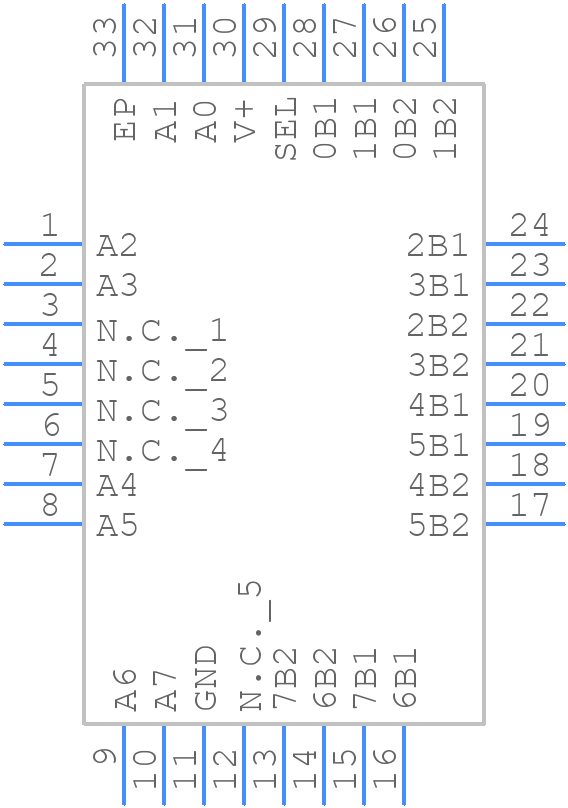

MAX4890ETJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4890ETJ+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 TQFN-EP(T3255-4)
click to zoom
3D Models
MAX4890ETJ+ - Analog Devices - 3D model - Quad Flat No-Lead - 32 TQFN-EP(T3255-4)
click to zoom

MAX4890ETJ+ Details

  • Manufacturer Part Number:

    MAX4890ETJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    5 X 5 MM, TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2005-02-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    LAN SWITCHING CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX4890ETJ+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4890ETJ+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a shielded cable for the RS-485 bus and to keep the bus lines as short as possible.
  • To ensure reliable communication in noisy industrial environments, use a shielded cable, twisted pair wiring, and implement error-checking mechanisms such as CRC or checksum in the communication protocol. Additionally, consider using a common-mode choke or ferrite beads to filter out high-frequency noise.
  • The maximum cable length supported by the MAX4890ETJ+ depends on the data rate, cable characteristics, and noise environment. As a general guideline, the MAX4890ETJ+ can support cable lengths up to 4000 feet (1219 meters) at a data rate of 250 kbps. However, it's recommended to consult the datasheet and perform tests to determine the maximum cable length for a specific application.
  • The MAX4890ETJ+ can be configured for half-duplex or full-duplex operation by controlling the DE (driver enable) and RE (receiver enable) pins. For half-duplex operation, tie DE and RE together and connect them to a single control signal. For full-duplex operation, connect DE and RE to separate control signals.
  • The recommended termination scheme for the RS-485 bus using the MAX4890ETJ+ is to use a 120-ohm termination resistor at each end of the bus, and to match the impedance of the cable to the termination resistor. This helps to minimize reflections and ensure reliable communication.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4890ETJ+ Overview

Use the download button to access the MAX4890ETJ+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX48, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
