MAX4895EETE+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4895EETE+T - VGA PORT PROTECTOR, -40 TO 85DEG C

Download MAX4895EETE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

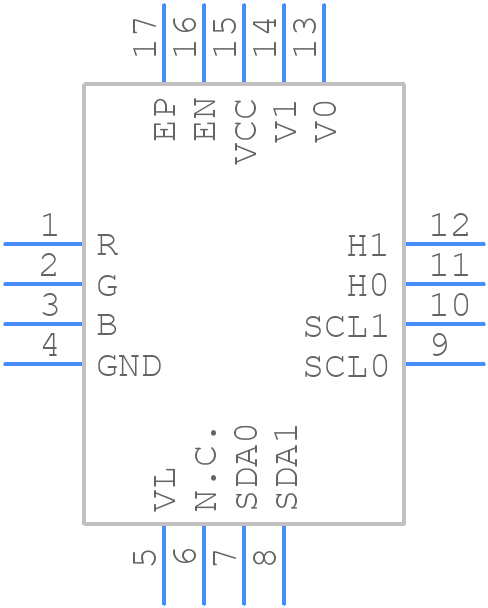

MAX4895EETE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4895EETE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+4
click to zoom
3D Models
MAX4895EETE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1633+4
click to zoom

MAX4895EETE+T Details

  • Manufacturer Part Number:

    MAX4895EETE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    HVQCCN, LCC16,.12SQ,20

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-05-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4895EETE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4895EETE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a shielded cable for the RS-485 bus and to keep the bus lines as short as possible.
  • To ensure reliable communication in noisy environments, use a shielded cable, twisted pair wiring, and implement error-checking mechanisms such as CRC or checksum in the communication protocol. Additionally, consider using a common-mode choke or ferrite bead to filter out high-frequency noise.
  • The maximum cable length supported by the MAX4895EETE+T depends on the baud rate, cable characteristics, and noise environment. As a general guideline, the MAX4895EETE+T can support cable lengths up to 4000 feet (1219 meters) at 115.2 kbps, but it's recommended to consult the datasheet and perform testing to determine the maximum cable length for a specific application.
  • The MAX4895EETE+T can be configured for half-duplex or full-duplex operation by controlling the DE (driver enable) and RE (receiver enable) pins. For half-duplex operation, tie DE and RE together and connect them to a single control signal. For full-duplex operation, connect DE and RE to separate control signals.
  • The recommended termination scheme for the RS-485 bus using the MAX4895EETE+T is to use a 120-ohm termination resistor at each end of the bus, and to ensure that the bus is properly terminated to prevent signal reflections and noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4895EETE+T Overview

Use the download button to access the MAX4895EETE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX48, or try a keyword search, such as Level Translators
