MAX4896ATP+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4896ATP+T - RELAY/LOAD DRIVER, -40 TO 125DEG C

Download MAX4896ATP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

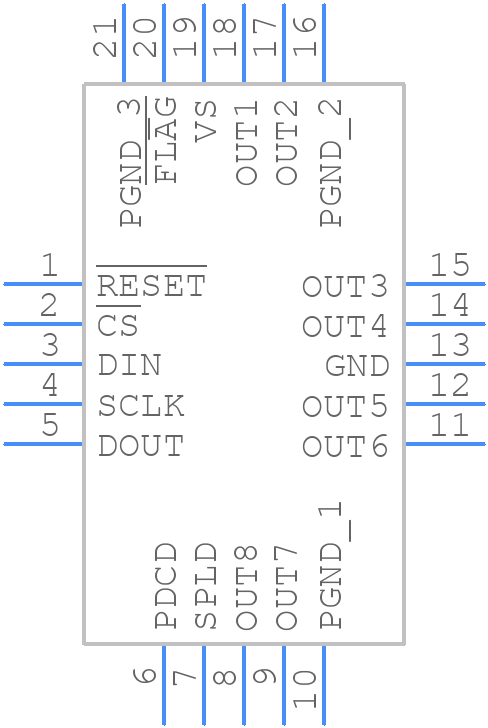

MAX4896ATP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4896ATP+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2055+5
click to zoom
3D Models
MAX4896ATP+T - Analog Devices - 3D model - Quad Flat No-Lead - T2055+5
click to zoom

MAX4896ATP+T Details

  • Manufacturer Part Number:

    MAX4896ATP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-01-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Built-in Protections:

    TRANSIENT; THERMAL; OVER VOLTAGE; SHORT CIRCUIT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.20SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    15 µs

  • Turn-on Time:

    20 µs

  • Width:

    5 mm

MAX4896ATP+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4896ATP+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a shielded enclosure and minimizing the length of the input and output traces can help reduce EMI and noise.
  • To ensure proper power and decoupling, use a high-quality power supply with low noise and ripple, and decouple the device with a 0.1uF ceramic capacitor between the VCC and GND pins. Additionally, use a 10uF electrolytic capacitor in parallel with the 0.1uF capacitor to filter out low-frequency noise.
  • The MAX4896ATP+T has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot common issues with the MAX4896ATP+T, start by checking the power supply and decoupling, then verify the input and output connections and signal integrity. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The MAX4896ATP+T is a high-reliability device, but it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required safety and reliability standards. Consult the datasheet and relevant industry standards, such as IEC 61508 or ISO 26262, for guidance on using the MAX4896ATP+T in safety-critical applications.
