MAX4901EBL+ - Analog Devices

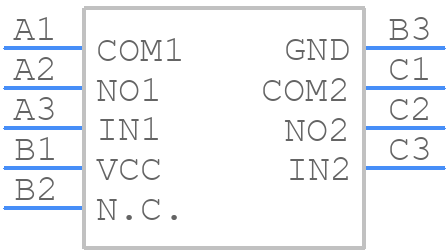

MAX4901EBL+ Details

• Manufacturer Part Number:

  MAX4901EBL+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  9-WLCSP-N/A

• Pin Count:

  9

• Manufacturer Package Code:

  9-WLCSP-N/A

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2005-08-24

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog IC - Other Type:

  DPDT

• JESD-30 Code:

  S-PBGA-B9

• JESD-609 Code:

  e1

• Length:

  1.52 mm

• Moisture Sensitivity Level:

  1

• Normal Position:

  NO

• Number of Channels:

  2

• Number of Functions:

  3

• Number of Terminals:

  9

• Off-state Isolation-Nom:

  70 dB

• On-state Resistance Match-Nom:

  0.01 Ω

• On-state Resistance-Max (Ron):

  0.3 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA9,3X3,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.67 mm

• Signal Current-Max:

  0.1 A

• Supply Current-Max (Isup):

  0.001 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  1.8 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  100 ns

• Switch-on Time-Max:

  100 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.52 mm
