MAX4983EEVB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4983EEVB+T - USB Interface, High Speed USB Switch, USB 2.0, 2.8 V, 5.5 V, UTQFN, 10 Pins

Download MAX4983EEVB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

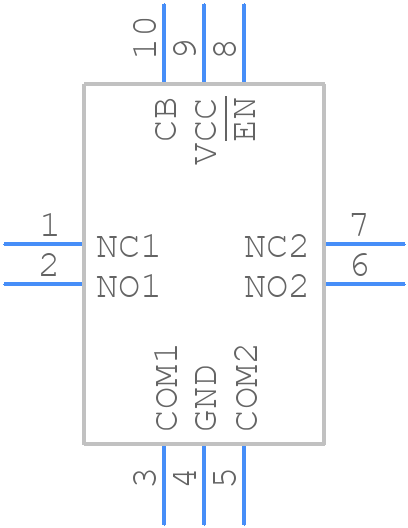

Symbol
MAX4983EEVB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4983EEVB+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - V101A1CN+1
click to zoom
3D Models
MAX4983EEVB+T - Analog Devices - 3D model - Quad Flat No-Lead - V101A1CN+1
click to zoom

MAX4983EEVB+T Details

  • Manufacturer Part Number:

    MAX4983EEVB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-1.4X1.8X0.5

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-1.4X1.8X0.5

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-02-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    R-PQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    48 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    10 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC10,.06X.07,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.065 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    5000 ns

  • Switch-on Time-Max:

    100000 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.4 mm
