MAX4984EEVB+T - Analog Devices

Description: USB Switch ICs High-Speed USB 2.0 Switch

Download MAX4984EEVB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

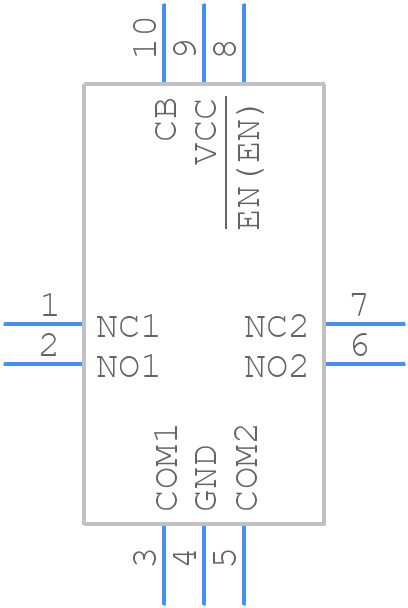

MAX4984EEVB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4984EEVB+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 10 Ultra-Thin QFN
click to zoom
3D Models
MAX4984EEVB+T - Analog Devices - 3D model - Quad Flat No-Lead - 10 Ultra-Thin QFN
click to zoom

MAX4984EEVB+T Details

  • Manufacturer Part Number:

    MAX4984EEVB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-1.4X1.8X0.5

  • Package Description:

    UTQFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-1.4X1.8X0.5

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-02-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    R-XQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    17 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    10 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC10,.06X.07,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.0065 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    5000 ns

  • Switch-on Time-Max:

    100000 ns

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.4 mm

MAX4984EEVB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4984EEVB+T involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • The input capacitor should be chosen based on the input voltage ripple and the output capacitor should be chosen based on the output voltage ripple and the desired output impedance. A general rule of thumb is to use a 10uF to 22uF ceramic capacitor for the input and a 10uF to 47uF ceramic capacitor for the output.
  • The MAX4984EEVB+T can operate at ambient temperatures up to 85°C, but the device's junction temperature should not exceed 150°C. It's recommended to use a heat sink or a thermal pad to ensure the device stays within the recommended operating temperature range.
  • Yes, the MAX4984EEVB+T is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard and is designed to operate in harsh environments. However, it's recommended to consult with Analog Devices Inc. for specific requirements and testing.
  • Common issues with the MAX4984EEVB+T can be troubleshooted by checking the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the PCB layout is correct. Also, check for any signs of overheating, such as excessive temperature rise or thermal shutdown.
