MAX49921FATA/VY+ footprint, schematic symbol and 3D model by Analog Devices

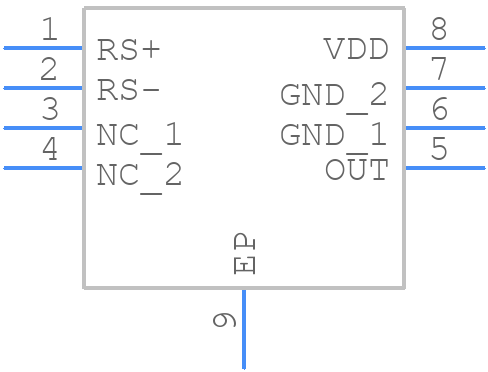

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX49921FATA/VY+
Part Number MAX49921FATA/VY+
Manufacturer Analog Devices
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - T823Y+3C
Released Date Jan 14, 2021
Last Modified Date Jul 23, 2026 3:14 AM UTC
Pinout / Pin List Click Here (Member Only)

MAX49921FATA/VY+ Details

Manufacturer Part Number:
MAX49921FATA/VY+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
8-LFCSP_SS-2X2X0.75
Package Description:
TDFN-8
Pin Count:
8
Manufacturer Package Code:
8-LFCSP_SS-2X2X0.75
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Date Of Intro:
2020-12-10
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.1 µA
Common-mode Reject Ratio-Min:
125 dB
Common-mode Reject Ratio-Nom:
140 dB
Frequency Compensation:
YES
Input Offset Voltage-Max:
50 µV
JESD-30 Code:
R-PDSO-N8
JESD-609 Code:
e3
Length:
3 mm
Low-Bias:
NO
Low-Offset:
YES
Micropower:
NO
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.12,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Slew Rate-Nom:
0.25 V/us
Supply Current-Max:
1 mA
Supply Voltage Limit-Max:
6 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Gain-Min:
50
Wideband:
NO
Width:
2 mm

MAX49921FATA/VY+ Frequently Asked Questions (FAQs)

A good PCB layout for the MAX49921FATA/VY+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure proper power-up and initialization of the MAX49921FATA/VY+, make sure to follow the recommended power-up sequence, which involves applying the power supply voltage (VCC) before the input voltage (VIN). Also, ensure that the input voltage is within the recommended range and that the device is properly bypassed with capacitors.
The MAX49921FATA/VY+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
To troubleshoot issues with the MAX49921FATA/VY+, start by checking the power supply voltage and input voltage levels. Verify that the device is properly powered up and initialized. Check for any signs of overheating, such as excessive current consumption or high junction temperature. Use an oscilloscope to monitor the output voltage and current waveforms. If the issue persists, consult the datasheet and application notes for further guidance.
Yes, the MAX49921FATA/VY+ is suitable for use in high-reliability and safety-critical applications. It's designed to meet the requirements of automotive and industrial applications, and it's qualified to various industry standards such as AEC-Q100 and IEC 61508. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
