MAX5024LASA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX5024LASA+T - Fixed LDO Voltage Regulator, 6.5V-65V in, 900mV Dropout, 5V/150mA out, NSOIC-8

Download MAX5024LASA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

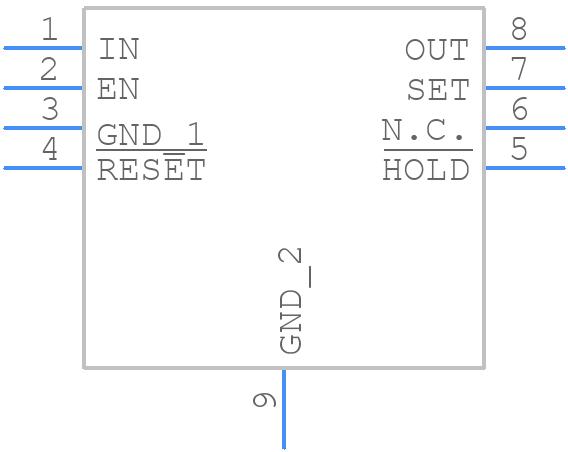

MAX5024LASA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5024LASA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8E+14
click to zoom
3D Models
MAX5024LASA+T - Analog Devices - 3D model - Small Outline Packages - S8E+14
click to zoom

MAX5024LASA+T Details

  • Manufacturer Part Number:

    MAX5024LASA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    1.5 V

  • Dropout Voltage1-Nom:

    0.9 V

  • Input Voltage Absolute-Max:

    70 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    11 V

  • Output Voltage1-Min:

    2.5 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX5024LASA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5024LASA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply the input voltage (VIN) before the enable signal (EN). Also, ensure that the input voltage is within the recommended range (4.5V to 5.5V) and that the enable signal is high (logic level) before applying the input voltage.
  • The maximum output current capability of the MAX5024LASA+T is 1A. However, it's recommended to limit the output current to 500mA to ensure reliable operation and to prevent overheating.
  • To protect the MAX5024LASA+T from overvoltage and undervoltage conditions, use a voltage supervisor or a voltage monitor IC to detect and respond to voltage faults. Additionally, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
  • The thermal derating of the MAX5024LASA+T is 10mW/°C above 25°C. This means that the device's power dissipation capability decreases as the ambient temperature increases. To ensure reliable operation, it's essential to consider the thermal derating when designing the system and to provide adequate heat sinking and cooling.
