MAX5024TASA+ - Analog Devices

Description: 65V, Low-Quiescent-Current, High-Voltage Linear Regulators with µP Reset and Watchdog Timer

Download MAX5024TASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

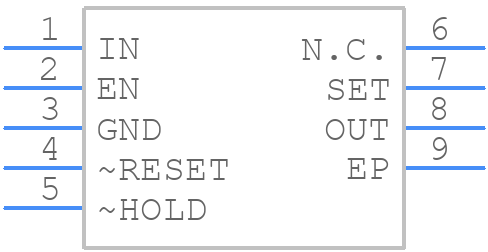

MAX5024TASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5024TASA+ - Analog Devices PCB footprint - Other - Other - SOIC127P600X168-9N
click to zoom
3D Models
MAX5024TASA+ - Analog Devices - 3D model - Other - SOIC127P600X168-9N
click to zoom

MAX5024TASA+ Details

  • Manufacturer Part Number:

    MAX5024TASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    1.5 V

  • Dropout Voltage1-Nom:

    0.9 V

  • Input Voltage Absolute-Max:

    70 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    11 V

  • Output Voltage1-Min:

    2.5 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX5024TASA+ Frequently Asked Questions (FAQs)

  • It's essential to follow a good layout and placement strategy to minimize noise and ensure proper operation. Place the MAX5024TASA+ close to the power source, use a solid ground plane, and keep the input and output traces separate. Also, avoid placing the device near high-current or high-voltage lines.
  • The MAX5024TASA+ has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Also, follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
  • The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 25V. A ceramic or film capacitor with an X7R or X5R dielectric is suitable for this application.
  • To ensure stability, follow the recommended PCB layout and component placement guidelines. Also, use a low-ESR input capacitor, and ensure the output capacitor value is within the recommended range (10uF to 22uF). Additionally, avoid using a capacitor with a high ESL (Equivalent Series Inductance) on the output.
  • The MAX5024TASA+ can deliver up to 2A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. Be sure to check the datasheet for the specific current capability at your desired operating conditions.
