MAX5024TASA+T - Analog Devices

Description: Linear Voltage Regulators 65V, Low-Quiescent-Current, High-Voltage Linear Regulators with uP Reset and Watchdog Timer

Download MAX5024TASA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

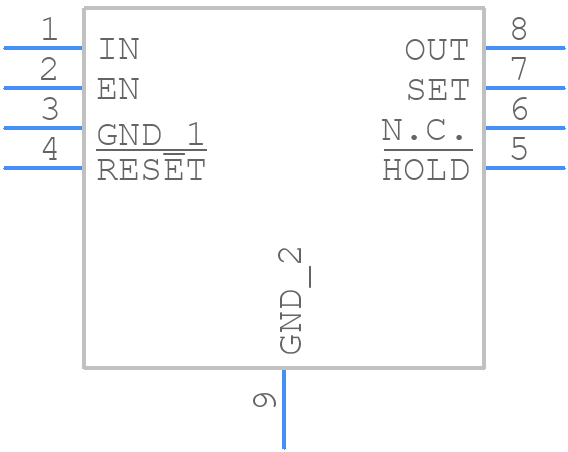

MAX5024TASA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5024TASA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8L SOIC
click to zoom
3D Models
MAX5024TASA+T - Analog Devices - 3D model - Small Outline Packages - 8L SOIC
click to zoom

MAX5024TASA+T Details

  • Manufacturer Part Number:

    MAX5024TASA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    1.5 V

  • Dropout Voltage1-Nom:

    0.9 V

  • Input Voltage Absolute-Max:

    70 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    11 V

  • Output Voltage1-Min:

    2.5 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX5024TASA+T Frequently Asked Questions (FAQs)

  • The MAX5024TASA+T is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the MAX5024TASA+T is properly powered and decoupled, it is recommended to use a high-quality power supply with low noise and ripple. A 0.1uF ceramic capacitor should be placed between the VCC pin and the GND pin, and a 10uF tantalum capacitor should be placed between the VCC pin and the GND pin. Additionally, it is recommended to use a ferrite bead or a pi-filter to filter out high-frequency noise on the power supply lines.
  • The MAX5024TASA+T has an operating temperature range of -40°C to +125°C. However, it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot common issues with the MAX5024TASA+T, such as oscillations or instability, it is recommended to check the power supply voltage and ensure it is within the recommended range. Check the input and output signals for noise and distortion, and ensure that the device is properly decoupled. Also, check the layout and placement of the device and ensure that it is following the recommended guidelines. If the issue persists, it is recommended to consult the datasheet and application notes, or contact Analog Devices Inc. support for further assistance.
  • The MAX5024TASA+T is a high-reliability device, but it is not specifically designed for safety-critical applications. However, it can be used in high-reliability applications with proper design and testing. It is recommended to consult the datasheet and application notes, and to follow the recommended design and testing guidelines to ensure the device meets the required reliability and performance standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5024TASA+T Overview

Use the download button to access the MAX5024TASA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX50, or try a keyword search, such as Linear Regulator ICs
