MAX5033BASA+T - Analog Devices

Description: Switching Voltage Regulators 500mA, 76V, High-Efficiency, MAXPower Step-Down DC-DC Converter

Download MAX5033BASA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

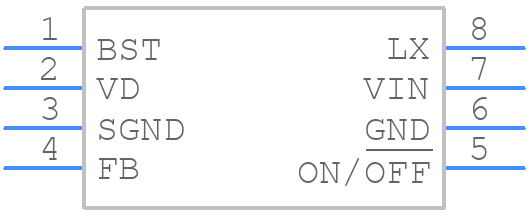

Symbol
MAX5033BASA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5033BASA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+5
click to zoom
3D Models
MAX5033BASA+T - Analog Devices - 3D model - Small Outline Packages - S8+5
click to zoom

MAX5033BASA+T Details

  • Manufacturer Part Number:

    MAX5033BASA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-11-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PFM CONTROL TECHNIQUE ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    76 V

  • Input Voltage-Min:

    7.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.2 A

  • Output Voltage-Max:

    5.15 V

  • Output Voltage-Min:

    4.85 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    137 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX5033BASA+T Frequently Asked Questions (FAQs)

  • The MAX5033BASA+T requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate. Additionally, it is recommended to use a 10uF ceramic capacitor between the VIN pin and GND pin to filter out noise.
  • To ensure stability, it is recommended to follow the recommended component values and layout guidelines in the datasheet. Additionally, it is recommended to use a minimum of 10uF output capacitance and to ensure that the output voltage is within the recommended range. It is also recommended to add a small resistor (e.g. 10ohm) in series with the output capacitor to prevent oscillation.
  • The MAX5033BASA+T can handle input voltages up to 28V, but it is recommended to operate within the recommended input voltage range of 4.5V to 18V for optimal performance and reliability.
  • The MAX5033BASA+T is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage at high temperatures to ensure reliability. It is also recommended to use a heat sink or thermal pad to dissipate heat and reduce the junction temperature.
  • To troubleshoot issues with the MAX5033BASA+T, it is recommended to check the input voltage, output voltage, and output current using an oscilloscope or multimeter. Check for noise, oscillations, or voltage droop, and ensure that the device is operating within the recommended specifications. Also, check the layout and component values to ensure they meet the recommended guidelines.
