MAX5035DASA+ - Analog Devices

Description: MAX5035DASA+, DC-DC Converter, Adjustable, 1.25 to 13.2V, Step Down, 0.135MHz, 8-Pin SOIC

Download MAX5035DASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

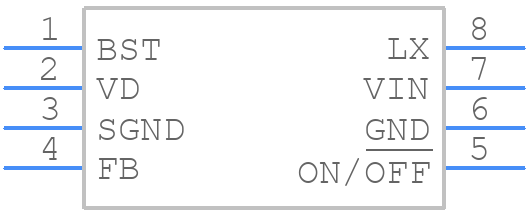

MAX5035DASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5035DASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - soic8-ren3
click to zoom
3D Models
MAX5035DASA+ - Analog Devices - 3D model - Small Outline Packages - soic8-ren3
click to zoom

MAX5035DASA+ Details

  • Manufacturer Part Number:

    MAX5035DASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, LEAD FREE, MS-012-AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-11-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    76 V

  • Input Voltage-Min:

    7.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    137 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX5035DASA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5035DASA+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device away from high-current carrying traces and to use a low-ESR capacitor for the output capacitor.
  • To ensure the MAX5035DASA+ is stable and doesn't oscillate, make sure to follow the recommended layout and placement guidelines, use a sufficient output capacitor with a low ESR, and ensure that the input voltage is within the recommended range. Additionally, it's recommended to add a small ceramic capacitor (e.g. 10nF) between the FB pin and GND to improve stability.
  • The maximum input voltage that the MAX5035DASA+ can handle is 28V. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 23V to ensure reliable operation and to prevent damage to the device.
  • The MAX5035DASA+ is rated for operation up to 125°C. However, it's recommended to derate the device's performance and ensure that the junction temperature is within the recommended range to prevent thermal shutdown and ensure reliable operation.
  • The output voltage of the MAX5035DASA+ can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin. The output voltage can be adjusted by changing the values of R1 and R2.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5035DASA+ Overview

Use the download button to access the MAX5035DASA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX50, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
