MAX504CSD+ - Analog Devices

Description: MAX504CSD+, 10-Bit 10 Bit DAC SPI, 14-Pin SOIC

Download MAX504CSD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

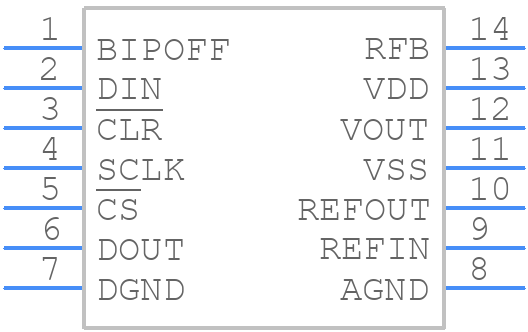

MAX504CSD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX504CSD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 14 SO
click to zoom
3D Models
MAX504CSD+ - Analog Devices - 3D model - Small Outline Packages - MAX 14 SO
click to zoom

MAX504CSD+ Details

  • Manufacturer Part Number:

    MAX504CSD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1997-12-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    3 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    25 µs

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX504CSD+ Frequently Asked Questions (FAQs)

  • It's essential to follow a good layout practice, keeping the device away from high-current paths and noise sources. Place the device close to the power source, and use a solid ground plane to reduce noise. Additionally, use a low-ESR capacitor for the output filter to minimize ringing and ensure stability.
  • The output capacitor value depends on the desired output voltage ripple and transient response. A general guideline is to use a capacitor with a value between 10uF to 47uF, with a low ESR (Equivalent Series Resistance) and a voltage rating that exceeds the output voltage. Ceramic or tantalum capacitors are suitable options.
  • The MAX504CSD+ can handle input voltages up to 28V, but it's recommended to keep the input voltage below 24V for optimal reliability and to prevent overheating. Exceeding the maximum input voltage can reduce the device's lifespan and increase the risk of failure.
  • During startup, the MAX504CSD+ has a soft-start feature that ramps up the output voltage to prevent inrush currents. It's essential to ensure that the input voltage is stable and within the recommended range before enabling the device. Power-up sequencing should be designed to ensure that the input voltage is applied before the enable signal.
  • The MAX504CSD+ has a maximum junction temperature of 150°C. To ensure proper heat dissipation, use a heat sink or a thermal pad, and follow good thermal design practices. Keep the device away from other heat sources, and ensure good airflow around the device.
