MAX5090AATE+T - Analog Devices

Description: Switching Voltage Regulators 2A, 76V, High-Efficiency MAXPower Step-Down DC-DC Converters

Download MAX5090AATE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

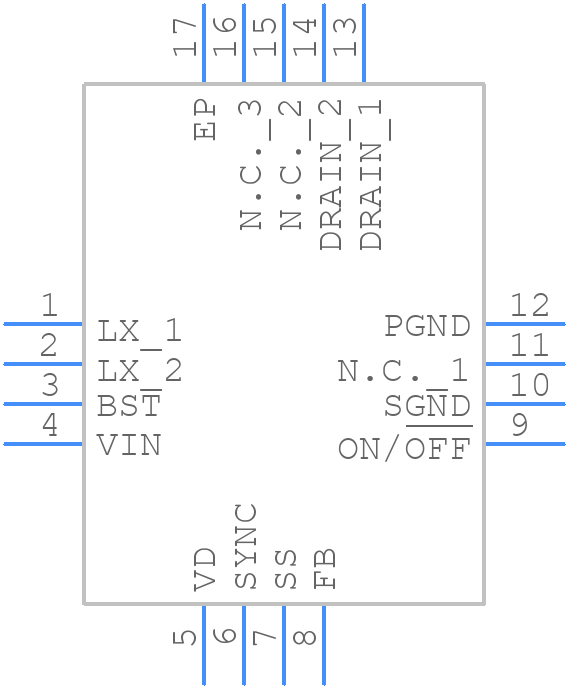

MAX5090AATE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5090AATE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1655+3_(H=0.8)-1
click to zoom
3D Models
MAX5090AATE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1655+3_(H=0.8)-1
click to zoom

MAX5090AATE+T Details

  • Manufacturer Part Number:

    MAX5090AATE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    HVQCCN,

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-03-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    76 V

  • Input Voltage-Min:

    6.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    3.39 V

  • Output Voltage-Min:

    3.2 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    150 kHz

  • Technology:

    BCD

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX5090AATE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5090AATE+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. Also, check that the device is operated within its recommended operating conditions, including input voltage, output current, and temperature range.
  • The MAX5090AATE+T can deliver up to 9A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and ensure that it is operated within its recommended operating conditions to avoid overheating.
  • The MAX5090AATE+T is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. It's recommended to check the device's thermal performance and ensure that it is operated within its recommended operating conditions to avoid overheating and ensure reliable operation.
  • To troubleshoot issues with the MAX5090AATE+T, start by checking the input voltage, output voltage, and output current to ensure they are within the recommended operating conditions. Check the PCB layout and component values to ensure they meet the recommended guidelines. Use an oscilloscope to check for noise and oscillations on the input and output lines. Also, check the device's thermal performance and ensure it is operated within its recommended operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5090AATE+T Overview

Use the download button to access the MAX5090AATE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX50, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
