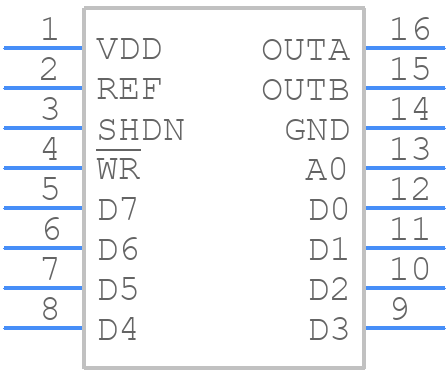

MAX5102BEUE+ - Analog Devices

MAX5102BEUE+ Details

• Manufacturer Part Number:

  MAX5102BEUE+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  16-TSSOP_4.4-4.4_MM

• Package Description:

  4.40 MM, 0.65 MM PITCH, MO-153AC, TSSOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  16-TSSOP_4.4-4.4_MM

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.40

• Date Of Intro:

  1999-10-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog Output Voltage-Max:

  5.5 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  PARALLEL, 8 BITS

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  5 mm

• Linearity Error-Max (EL):

  0.7812%

• Moisture Sensitivity Level:

  1

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Settling Time-Nom (tstl):

  6 µs

• Supply Current-Max:

  0.36 mA

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
