MAX5135GTG+T - Analog Devices

Description: Digital to Analog Converters - DAC 12-Bit 4Ch Precision DAC

Download MAX5135GTG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

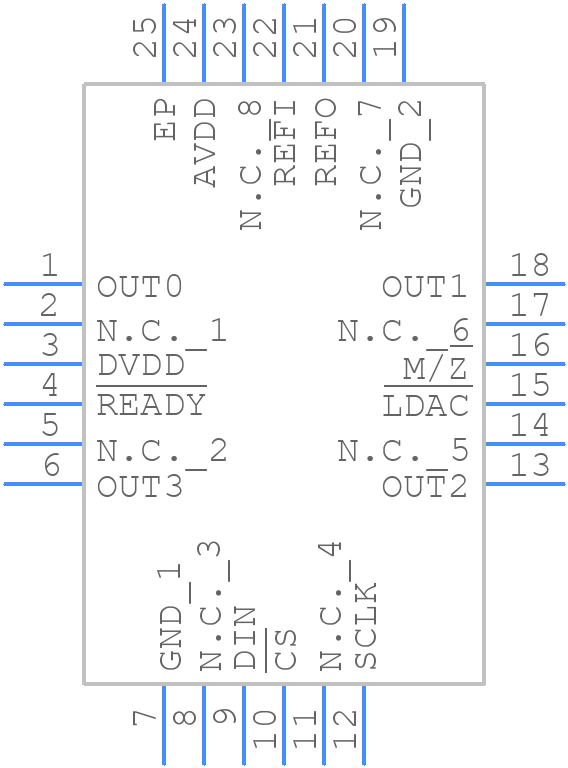

MAX5135GTG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5135GTG+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4
click to zoom
3D Models
MAX5135GTG+T - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4
click to zoom

MAX5135GTG+T Details

  • Manufacturer Part Number:

    MAX5135GTG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2008-08-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.024%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    3.6 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX5135GTG+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5135GTG+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to minimize the length of the traces between the device and the capacitors.
  • To ensure stability, make sure to follow the recommended output capacitor values and ESR ranges, and use a low-ESR capacitor for the output filter. Additionally, ensure that the input voltage is within the recommended range, and that the device is properly decoupled from the input voltage source.
  • The MAX5135GTG+T can deliver up to 150mA of output current, but this may vary depending on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and adjust the output current accordingly to prevent overheating.
  • The MAX5135GTG+T is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and ensure proper heat sinking to prevent overheating. Additionally, consider using a thermally-enhanced package or a heat sink to improve thermal performance.
  • To troubleshoot issues with the MAX5135GTG+T, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the input and output capacitors are correctly sized. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5135GTG+T Overview

Use the download button to access the MAX5135GTG+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX51, or try a keyword search, such as Digital to Analog Converters
