Part Image

MAX515ESA+ - Analog Devices

Description: MAX515ESA+, 10-Bit 10 Bit DAC SPI, 8-Pin SOIC

Download MAX515ESA+ Model

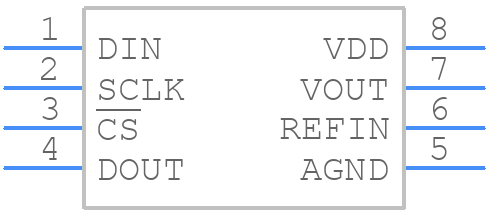

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX515ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX515ESA+ - Analog Devices  - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX515ESA+ Details

  • Manufacturer Part Number:

    MAX515ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1997-12-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    4.6 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    25 µs

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX515ESA+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX515ESA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to place the bypass capacitors as close as possible to the IC's power pins.
  • The values of the external capacitors (C1, C2, and C3) in the MAX515ESA+ depend on the specific application and the desired filter characteristics. As a general guideline, C1 and C2 should be chosen to be around 10-22nF, and C3 should be around 10-100nF. However, it's recommended to consult the datasheet and application notes for more specific guidance.
  • The MAX515ESA+ is a 12-bit, 50Msps analog-to-digital converter (ADC), and it can operate at frequencies up to 50MHz. However, the maximum operating frequency may vary depending on the specific application and the quality of the input signal.
  • The MAX515ESA+ has a parallel interface that can be easily interfaced with a microcontroller or FPGA. The IC's data output is a 12-bit parallel bus, and it also has a clock output (CLKOUT) that can be used to synchronize the data transfer. The interface can be implemented using a simple parallel bus interface or a more complex interface using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) protocol.
  • The power consumption of the MAX515ESA+ depends on the operating frequency, supply voltage, and other factors. According to the datasheet, the typical power consumption is around 150mW at 50Msps. To reduce power consumption, you can consider reducing the operating frequency, using a lower supply voltage, or implementing power-down modes when the ADC is not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX515ESA+ Overview

Use the download button to access the MAX515ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX51, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
