MAX518AESA+ - Analog Devices

Description: Digital to Analog Converters - DAC 2-Wire, Serial, 8-Bit DACs with Rail-to-Rail Outputs

Download MAX518AESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

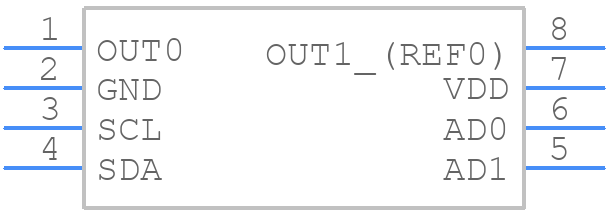

Symbol
MAX518AESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX518AESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SO-8-1
click to zoom
3D Models
MAX518AESA+ - Analog Devices - 3D model - Small Outline Packages - SO-8-1
click to zoom

MAX518AESA+ Details

  • Manufacturer Part Number:

    MAX518AESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1995-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX518AESA+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX518AESA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for the VCC pin.
  • To ensure the accuracy and stability of the MAX518AESA+ output voltage, it's essential to use a high-quality voltage reference, such as the internal reference or an external precision reference. Additionally, the output voltage should be filtered using a low-pass filter to reduce noise and ripple.
  • The MAX518AESA+ can drive a maximum capacitive load of 10nF. Exceeding this limit may cause instability or oscillations in the output voltage.
  • To protect the MAX518AESA+ from overvoltage and overcurrent conditions, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode on the input pins. Additionally, a current-limiting resistor or a fuse can be used to prevent overcurrent conditions.
  • The recommended operating temperature range for the MAX518AESA+ is -40°C to +125°C. Operating the device outside this range may affect its performance, accuracy, and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX518AESA+ Overview

Use the download button to access the MAX518AESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX51, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
