MAX519ACSE+ - Analog Devices

Description: MAX519ACSE+, 8 bit-Bit DAC Dual, I2C, 16-Pin SOIC

Download MAX519ACSE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

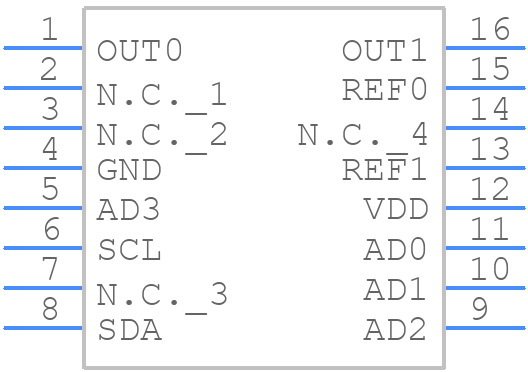

MAX519ACSE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX519ACSE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX519ACSE+ - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX519ACSE+ Details

  • Manufacturer Part Number:

    MAX519ACSE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SO-8

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1995-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX519ACSE+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX519ACSE+ involves separating the analog and digital grounds, using a solid ground plane, and keeping the analog and digital signal traces separate. Additionally, it's recommended to place the device close to the analog signal sources and keep the input traces as short as possible.
  • To ensure accuracy and linearity, it's essential to follow proper PCB design and layout guidelines, use a stable and low-noise power supply, and consider the effects of temperature on the device's performance. Additionally, calibration and trimming of the device may be necessary to achieve optimal performance over the entire operating temperature range.
  • Potential sources of noise and interference include digital noise, power supply noise, and electromagnetic interference (EMI). To mitigate these effects, use proper shielding, filtering, and grounding techniques, and consider using a low-noise power supply and a Faraday cage or shielded enclosure.
  • The MAX519ACSE+ can be programmed using a microcontroller or a digital signal processor (DSP) to perform specific tasks such as data acquisition, signal processing, or control functions. The device's registers can be accessed and configured using a serial interface, such as SPI or I2C, and the programming can be done using a high-level programming language such as C or Python.
  • In high-reliability applications, it's essential to consider the device's reliability and fault tolerance. The MAX519ACSE+ has built-in features such as error detection and correction, and fault detection and reporting. Additionally, designers should consider implementing redundancy, error correction, and fail-safe mechanisms to ensure the system's reliability and fault tolerance.
