MAX5216GUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX5216GUA+. - DAC, 16BIT, 5.25V, 50MHZ, 1LSB, 8UMAX

Download MAX5216GUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

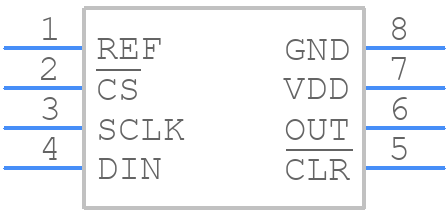

MAX5216GUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5216GUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036
click to zoom
3D Models
MAX5216GUA+ - Analog Devices - 3D model - Small Outline Packages - 21-0036
click to zoom

MAX5216GUA+ Details

  • Manufacturer Part Number:

    MAX5216GUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2011-01-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    14 µs

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5216GUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5216GUA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure the accuracy of the MAX5216GUA+ over temperature, it's recommended to use a high-accuracy external reference voltage, to minimize thermal gradients on the PCB, and to use a thermally stable package such as the TQFN package. Additionally, the device has a built-in temperature sensor that can be used to compensate for temperature-related errors.
  • The maximum clock frequency that can be used with the MAX5216GUA+ is 50MHz. However, the actual clock frequency used may be limited by the specific application and the noise tolerance of the system.
  • The digital output data from the MAX5216GUA+ is in a 24-bit twos-complement format. The data can be handled by using a microcontroller or a digital signal processor to process the data and perform any necessary calculations or conversions.
  • The power-on reset (POR) timing for the MAX5216GUA+ is typically around 10ms, but it can vary depending on the specific application and the power supply ramp-up time. It's recommended to wait for at least 10ms after power-up before starting to use the device.
