MAX5259EEE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX5259EEE+ - DAC, 8BIT, OCTAL, QSOP-16

Download MAX5259EEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

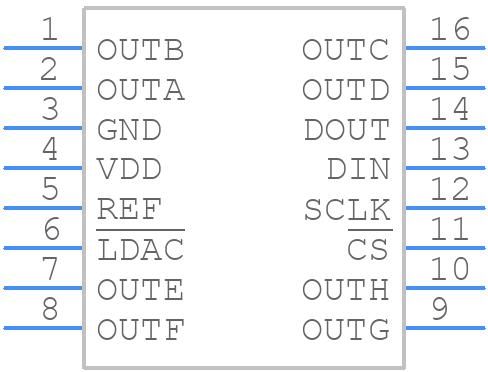

MAX5259EEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5259EEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 21-0055_C
click to zoom
3D Models
MAX5259EEE+ - Analog Devices - 3D model - Small Outline Packages - MAX 21-0055_C
click to zoom

MAX5259EEE+ Details

  • Manufacturer Part Number:

    MAX5259EEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2000-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    2.6 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX5259EEE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5259EEE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and interference.
  • To optimize the performance of the MAX5259EEE+ in a noisy environment, use a low-pass filter on the input signals, add decoupling capacitors on the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI). Additionally, consider using a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • The maximum operating temperature range for the MAX5259EEE+ is -40°C to +125°C. However, it's recommended to operate the device within the -20°C to +85°C range for optimal performance and reliability.
  • To troubleshoot issues with the MAX5259EEE+, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check for noise and distortion on the output signals, and consult the datasheet and application notes for guidance on specific troubleshooting techniques.
  • Yes, the MAX5259EEE+ is suitable for use in high-reliability or safety-critical applications. It's designed to meet the requirements of automotive, industrial, and medical applications, and it's manufactured using a robust and reliable process. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
