MAX526CCNG+ - Analog Devices

Description: MAX526CCNG+, 12 bit-Bit 12 Bit DAC Quad Parallel, 24-Pin PDIP

Download MAX526CCNG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

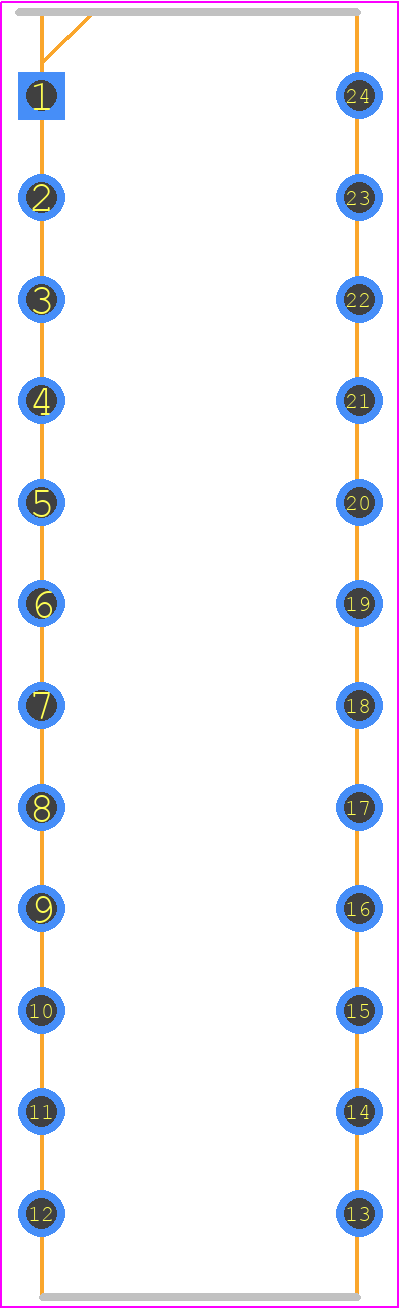

MAX526CCNG+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 24 PDIP 300mil
click to zoom
3D Models
MAX526CCNG+ - Analog Devices  - 3D model - Dual-In-Line Packages - 24 PDIP 300mil
click to zoom

MAX526CCNG+ Details

  • Manufacturer Part Number:

    MAX526CCNG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-PDIP-300_MIL

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-PDIP-300_MIL

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2001-05-16

  • Manufacturer:

    Analog Devices Inc

  • Risk Rank:

    7.04

  • YTEOL:

    8.5

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.012%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Current-Max:

    28 mA

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX526CCNG+ Overview

Use the download button to access the MAX526CCNG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX52, or try a keyword search, such as Digital to Analog Converters
