MAX528CWG+ - Analog Devices

Description: Maxim MAX528CWG+, 8-channel 8 bit Serial DAC, 24-Pin SOIC

Download MAX528CWG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

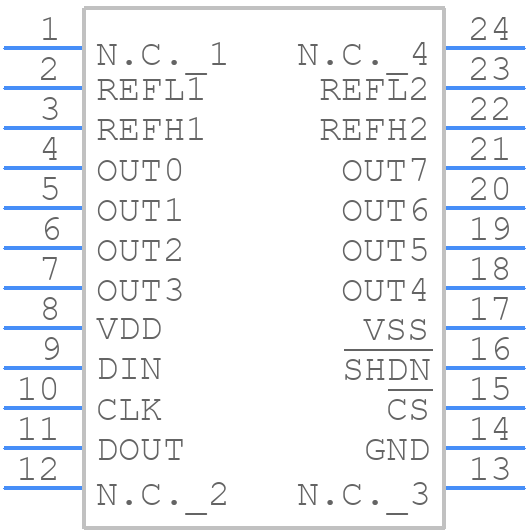

MAX528CWG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX528CWG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-24
click to zoom
3D Models
MAX528CWG+ - Analog Devices - 3D model - Small Outline Packages - SOIC-24
click to zoom

MAX528CWG+ Details

  • Manufacturer Part Number:

    MAX528CWG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-SOIC_W-300_MIL

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    2.25 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.2 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.99 mm

  • Settling Time-Max:

    2 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX528CWG+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX528CWG+ involves separating analog and digital signals, using a solid ground plane, and keeping the analog input and output traces short and shielded. Additionally, it's recommended to place the device close to the analog signal sources and use a low-impedance power supply.
  • To ensure accuracy and stability, it's essential to follow proper PCB design and layout guidelines, use a stable and low-noise power supply, and consider using external components such as capacitors and resistors with low temperature coefficients. Additionally, the device's internal calibration and trimming features can help to minimize errors and ensure stability over temperature and voltage variations.
  • Potential sources of noise and interference in the MAX528CWG+ include digital switching noise, power supply noise, and electromagnetic interference (EMI). These can be mitigated by using a low-noise power supply, separating analog and digital signals, using shielding and grounding techniques, and implementing proper filtering and decoupling.
  • The MAX528CWG+ can be programmed and configured using a variety of methods, including SPI, I2C, and parallel interfaces. The device's configuration and programming can be done using Analog Devices' evaluation software and development tools, or by using a custom-designed interface and software.
  • The MAX528CWG+ has built-in reliability and fault-tolerance features such as error detection and correction, brownout detection, and thermal shutdown protection. These features can impact system design by requiring additional external components and circuitry to ensure reliable operation, and by influencing the overall system architecture and fault-tolerance strategy.
