MAX531BCSD+ - Analog Devices

Description: MAX531BCSD+, 12-Bit 12 Bit DAC SPI, Microwire, 14-Pin SOIC

Download MAX531BCSD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

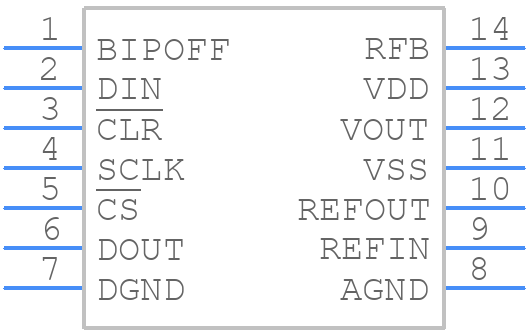

MAX531BCSD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX531BCSD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 14 SO
click to zoom
3D Models
MAX531BCSD+ - Analog Devices - 3D model - Small Outline Packages - MAX 14 SO
click to zoom

MAX531BCSD+ Details

  • Manufacturer Part Number:

    MAX531BCSD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1999-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    4.6 V

  • Analog Output Voltage-Min:

    -4.6 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    25 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX531BCSD+ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding configuration, keeping the analog and digital grounds separate, and placing the device close to the power supply. Additionally, use a solid ground plane and avoid running digital signals near the analog inputs.
  • To ensure accuracy, it is essential to calibrate the device at multiple temperatures, and consider the temperature coefficient of the voltage reference and the resistors used in the circuit. Additionally, use a high-precision voltage reference and ensure that the device is operated within its specified temperature range.
  • The MAX531BCSD+ can drive up to 100pF of capacitive load. However, it is recommended to limit the capacitive load to 50pF or less to ensure stability and prevent oscillations.
  • Yes, the MAX531BCSD+ can be used in a multiplexed configuration. However, it is essential to consider the settling time, multiplexer switching frequency, and the impact of multiplexer resistance on the accuracy of the device. Additionally, ensure that the multiplexer is properly biased and that the signals are properly terminated.
  • It is recommended to power up the device in the following sequence: VCC, VREF, and then the digital inputs. This sequence helps prevent latch-up and ensures proper device operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX531BCSD+ Overview

Use the download button to access the MAX531BCSD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX53, or try a keyword search, such as Digital to Analog Converters
