MAX532BCWE+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX532BCWE+T - Digital to Analogue Converter, Precision, 12 bit, SPI, ± 11.4V to ± 16.5V, WSOIC, 16 Pins

Download MAX532BCWE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

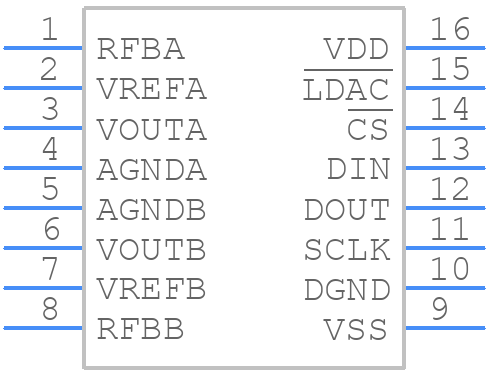

MAX532BCWE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX532BCWE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 SO
click to zoom
3D Models
MAX532BCWE+T - Analog Devices - 3D model - Small Outline Packages - 16 SO
click to zoom

MAX532BCWE+T Details

  • Manufacturer Part Number:

    MAX532BCWE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    12.5 V

  • Analog Output Voltage-Min:

    -12.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    2.5 µs

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX532BCWE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX532BCWE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces as short as possible.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC before applying any input signals. Also, ensure that the VCC supply is stable and within the recommended operating range before applying any input signals.
  • The maximum allowable input voltage for the MAX532BCWE+T is 5.5V. To protect the device from overvoltage, use a voltage limiter or a clamp circuit at the input, and ensure that the input voltage never exceeds the maximum rating.
  • To handle ESD protection for the MAX532BCWE+T, use ESD protection devices such as TVS diodes or ESD arrays at the input and output pins. Additionally, follow proper handling and storage procedures to prevent ESD damage.
  • The thermal management strategy for the MAX532BCWE+T involves using a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device, and avoid blocking the airflow with other components or obstacles. Also, follow the recommended operating temperature range to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX532BCWE+T Overview

Use the download button to access the MAX532BCWE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX53, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
