MAX5352BEUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX5352BEUA+ - Digital to Analogue Converter, Low Power, 12 bit, SPI, 4.5V to 5.5V, µMAX, 8 Pins

Download MAX5352BEUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

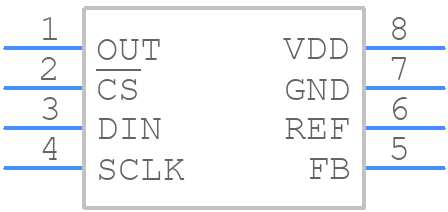

MAX5352BEUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5352BEUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 µMAX
click to zoom
3D Models
MAX5352BEUA+ - Analog Devices - 3D model - Small Outline Packages - 8 µMAX
click to zoom

MAX5352BEUA+ Details

  • Manufacturer Part Number:

    MAX5352BEUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1997-03-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    14 µs

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5352BEUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5352BEUA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to minimize the length of the traces between the device and the capacitors.
  • To ensure the MAX5352BEUA+ is stable and doesn't oscillate, it's essential to follow the recommended layout and placement guidelines, use a sufficient output capacitor, and ensure the input voltage is within the recommended range. Additionally, the device should be decoupled from the power supply using a 0.1uF ceramic capacitor, and the output should be loaded with a minimum of 1kΩ resistance.
  • The maximum output current of the MAX5352BEUA+ is 200mA. However, it's recommended to limit the output current to 150mA or less to ensure the device operates within its safe operating area and to prevent overheating.
  • The MAX5352BEUA+ is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to derate the output current and ensure proper heat sinking to prevent overheating.
  • To troubleshoot issues with the MAX5352BEUA+, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output. Finally, consult the datasheet and application notes for guidance on troubleshooting common issues.
